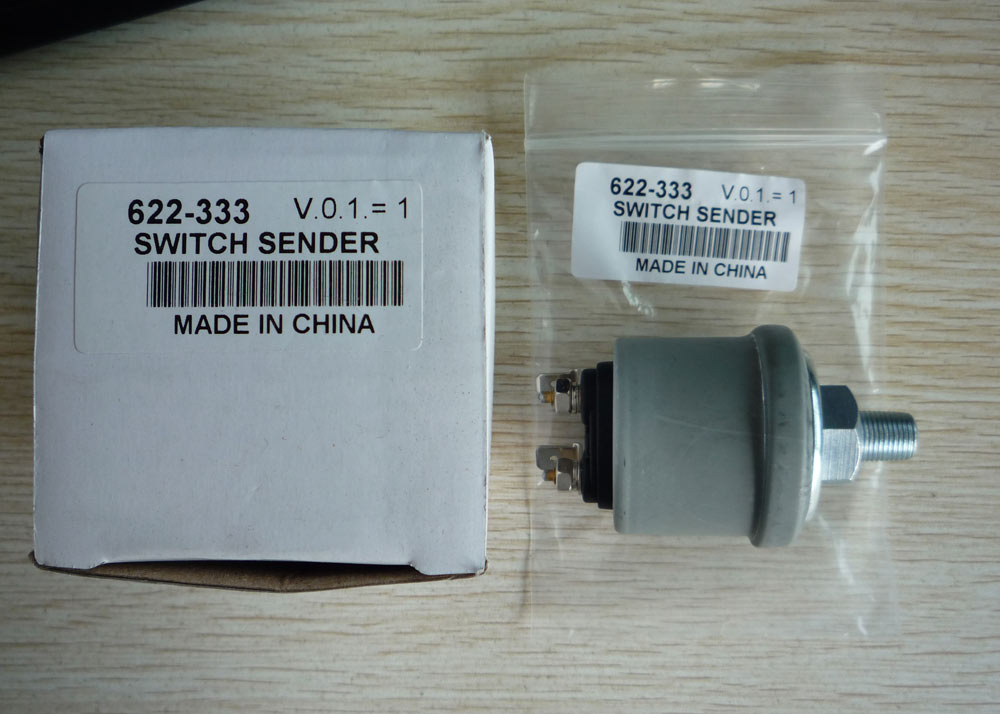

FG wilson 622-333 switch sender large quantity in stock can delivery at the same day upon confirm the order Welcome your details inquiry,Oil pressure sender 622-333. LOP Switch sender 622-333

Connections to the oil pressure switch sender (part no 622-333) on FG Wilson generators are as follows.

  Terminal G: Is the sender and wire OP should be connected to this terminal with the wire disconnected, the terminal should read close to 10 ohms
  to ground with genset off.

  Terminal WK: Is the switch and wire 15 should be connected to this terminal with the wire disconnected, the terminal should read less than 1
  ohm to ground with genset off.

  Wire 15 will not be connected on 2300 amp; 2800 electronic engines, since the engine's Electronic Control Module will control the low oil pressure
  shutdown
