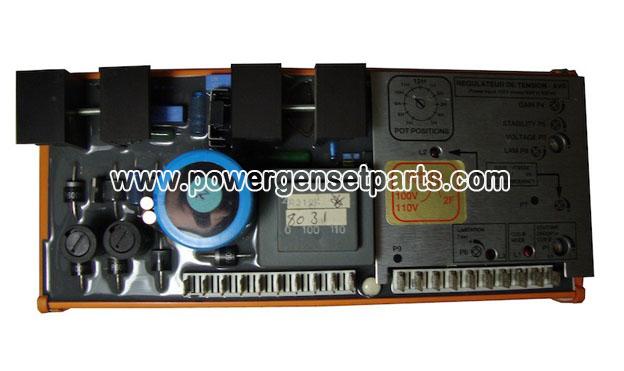

The 200 series regulators are shunt regulators, that is they tap off field current from the alternator, which control the voltage or the cosØ of the alternator by adjus- ting the field current in the exciter field coil. They can operate alone or with a short circuit corrector, also called a parallel booster in the event that a short circuit current is necessary or when large auxiliaries need to be started. They are completely encapsulated and are suitable for fitting inside or outside the machine.

Specifications

• Sensing input : lt; 2VA isolated by internal transformer
• Power input : 630VA 100V single-phase or 63V three- phase 50/60 Hz maximum
• TI input parallel operation : 1Amp, 1VA - Power output : 63V 7Amp continuous with 90V 10Amp peaks
• Exciter resistance : 9 Ohms minimum
• Regulation precision : ± 1% of Un and ± 0.02 of cosØ at rated power
• Temperature shift : 1% of Un for delta T ambient of - 20° to 25°C or 25° to 70°C
• Response time : lt; 10 ms - Operating temperature : -20°C to +70°C
• Storage temperature : -40°C to +85°C
• Size :
  height 115 mm
  width 115 mm
  depth 230 mm
  weight 1 kg (2 Lbs)
