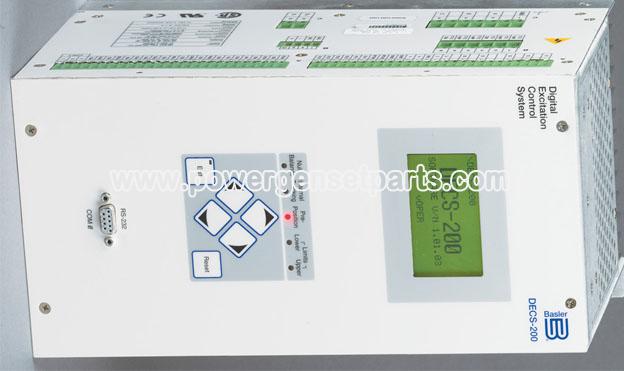

Digital excitation control system DECS-200

One DECS-200 Digital Excitation Control System can accommodate 32Vdc, 63Vdc, or 125Vdc applications up to 15Adc. This unique flexibility provides precision control ofgenerators of virtually any size. The DECS-200 also incorporates a pulse width modulatedpower stage, which improves system performances in non-linear load applications.

Main features of DECS-200

• Microprocessor-based design
• True RMS sensing, single or three phase
• 32Vdc, 63Vdc, and 125Vdc outputs at 15Adc
• 0.25% Voltage Regulation Accuracy
• Setup from front panel HMI or by PC with Windows® setup software included
• 20 standard stability selections
• User customizable stability selection
• Paralleling compensation
• Underfrequency compensation or V/Hz Ratio Limiter
• Soft start buildup
• Field Current Regulation Mode (Manual Mode)
• Autotracking between operating modes and between DECS-200 units(optional)
• Minimum Excitation Limiter (Internally generated or customizable)
• On and off-line Maximum Excitation Limiters
• Stator Current Limiter
• Var and Power Factor Controllers
• Exciter Diode Monitoring (EDM)
• Sequence of Events Recording
• Oscillography
• Voltage Matching
• Eight (8) generator protection features
• Programmable output contacts
• Front panel backlit LCD display
• Front panel mounted RS-232 and side RS-485 communications ports
• Modbus™ protocol for RS-485 input allows communications up to 4000 feet away
• under 1% metering accuracy for 12 generator parameters
• Remote set point control via:
  - Contact inputs
  - Proportional control via ±10Vdc or 4-20mA
  - Communications inputs RS-232 (ASCII) or RS-485 (Modbus™)
