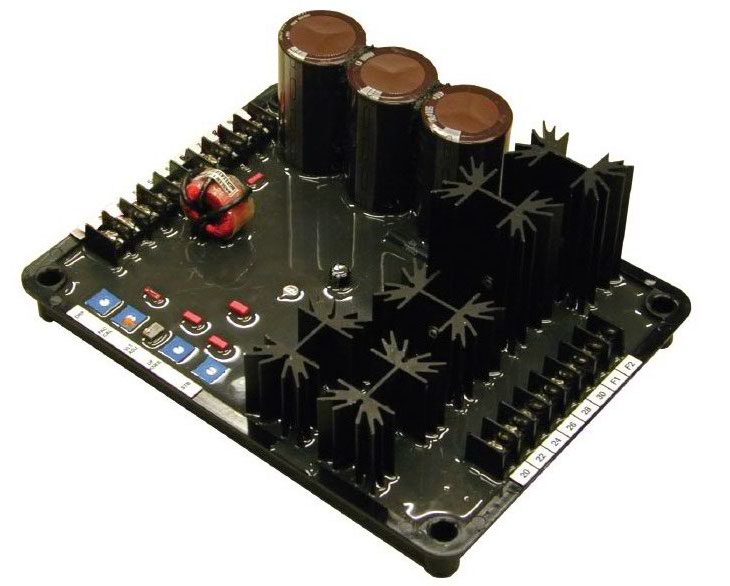

AVR Basler AVC125-10A2 Auotatic Voltage Regulator

The AVC63-12 and AVC125-10 regulate the level of excitation supplied to the field of a conventional, brushless, synchronous generator. Regulation is achieved by sensing the generator output voltage, converting it to a dc signal, and comparing the signal to a reference voltage. An error signal is developed and used to control the dc field power in order to maintain a constant generator output. Each regulator includes frequency compensation with selectable slope, inverse-time overexcitation shutdown, buildup circuitry, single- or three-phase voltage sensing, single-or three-phase shunt or permanent magnet generator (PMG) power input, parallel droop compensation, and an accessory input. The accessory input provides compatibility with devices such as var/power factor controllers or excitation limiters.

Power Input

Configuration: 1-phase or 3-phase Frequency: 50 to 400 Hz

Voltage Range AVC125-10: 180 to 264 Vac

Maximum Continuous Burden AVC125-10: 1,750 VA

Sensing Input

Configuration: 1-phase or 3-phase Burden: lt;1 VA per phase

Voltage Range Option A: 90 to 139 Vac Option B: 180 to 264 Vac

Nominal Frequency Option 1: 50 or 60 Hz Option 2: 400 Hz
