Tags: Marelli M16FA655A Voltage Regulator for Marelli MJB series generator,Marelli AVR M16FA655A.
Description:

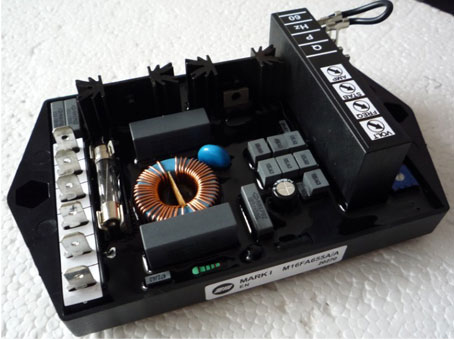

The voltage regulator M16FA655A type “MARK V”, is suitable for Synchronous Generators of MARELLI MOTORI make, MJB series, size range 160-225 frames. The regulator is fully insulated in order to maintain high reliability also with severe ambient conditions (high level of humidity, dust, salt atmosphere), and in case of high vibrations level. The regulator is proper both for single and 3-phase generators.
TECHNICAL DATA:
| REGULATION ACCURACY | +/- 0.5% rated steady state conditions |
| VOLTAGE DRIFT: | voltage change, for 50°C T amb change |
| RESPONSE TIME: | 1 cycle |
| OPERATING TEMPERATURE: | -30 °C ÷ +70 °C |
| EXCITER FIELD RESISTANCE: | 8 Ω (min) ÷ 20 Ω(max) |
| SUPPLY VOLTAGE: | 170 -270 V |
| POWER SUPPLY: | 350 VA (max) |
| POWER DISSIPATED: | 15 W (max) |
| VOLTAGE SENSING: | 170 - 270 V |
| OUTPUT VOLTAGE (DC): | 30 V |
| OUTPUT CURRENT (DC): | 5 A (max, continuos) |
| OUTPUT CURRENT (DC): | (max forcing one minute) |
