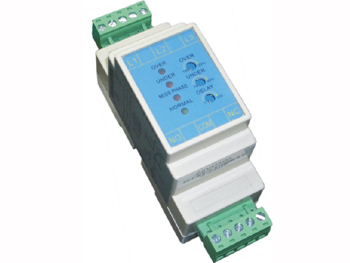

HVD100 Voltage Protection Module

HVD100 is a voltage protection module of 3 phase 3 wires, when the voltage occur over voltage, under voltage, miss phase, send out a free voltage output.

FUNCTION

◆Monitor one source 3 phase voltage

◆Monitor over voltage, under voltage, miss phase.

◆The point of over voltage, under voltage is adjustable.

◆The timer of voltage abnormal delay is adjustable;

◆The output is a relay free voltage contact.

◆Module structure design, ABS plastic crust, rail installation, plug connector,

◆convenient maintenance.

CHARACTERISTIC

◆Input voltage: 380VAC 50/60Hz 3-phase 3 wires

◆Power consumption lt;1VA

◆Over voltage range: 105%-125%Rated

◆Under voltage range: 75%-95%Rated

◆Delay of voltage abnormal: 0-10seconds

◆Relay output capacitance: AC250V 7A

◆35mm rail installation

◆Operation temperature: -25 to +70oC
