Description

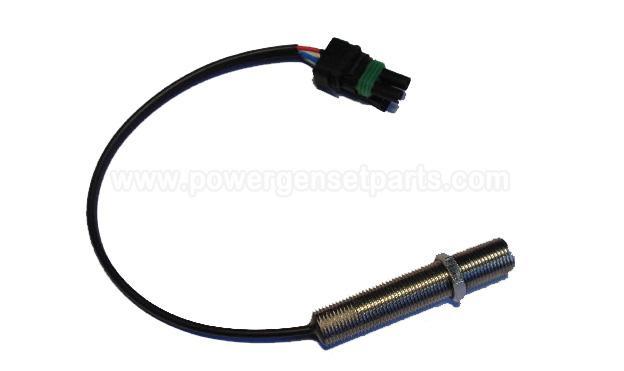

Magnetic pickup(Cummins speed sensor/ MPU):

P/N: 3034572
The speed sensor could be Customerized.
Magnetic pickup(Cummins speed sensor/ MPU):

PARAMETER:
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum

We can produce Magnetic pickup(Cummins speed sensor) according to customer's requirement.
