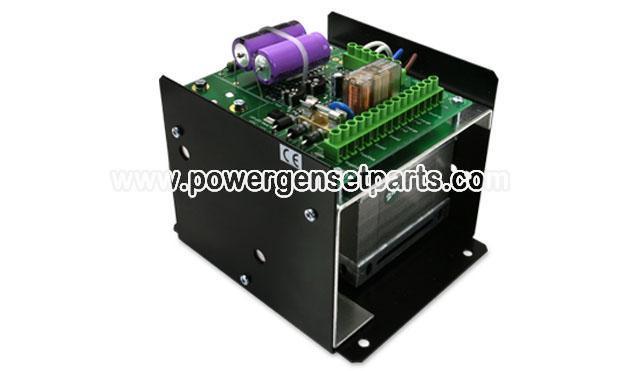

The model DSE5103 is a 3 Amp battery charger designed for permanent connection to automotive batteries, maintaining them in a fully charged condition without overcharging. The charger is also capable of rapidly recharging the batteries at a current up to the full rated output.

The charger is designed for reliability, ease of installation and accessibility during routine servicing.
It features radio frequency suppression and its smooth output linear mode design has a low ripple
voltage making the charger suitable for use with electronic equipment.


The charger may also be used to supply a standing load attached to the battery. The charger output may be factory set to account for the standing load.


The charger has both Overload and Short Circuit protection features, achieved by limiting the current to a
safe value during these conditions. It will automatically recover after the condition is removed.

If a short circuit or a severe overload is applied such that the voltage falls below four volts for longer than 10 seconds, then the Charge Fail Alarm relay will energise and the charge fail contact will close. If the charger is inadvertently reverse connected to the battery then the fuse-link on the circuit board will
rupture. This should be replaced with a 10A quick blow type.
