Cummins Speed Sensor 3034572

Name: Cummins Speed Sensor 3034572

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Cummins pick-up 3034572.Cummins Speed Sensor 3034572

Detailed Product Description

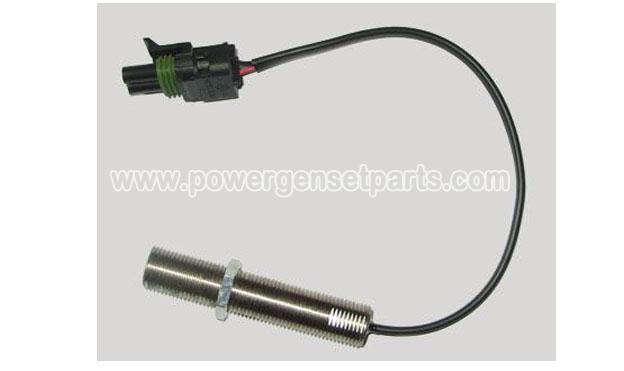

1.Magnetic pick up (mpu) P/N: 3034572
2.Magnetic pick up(Cummins speed sensor/MPU)
3.Cummins pick-up 3034572
4.high quality

Cummins pick-up 3034572

Magnetic pick up (mpu) P/N: 3034572
Magnetic pick up(Cummins speed sensor/MPU)

Cummins pick-up 3034572

PARAMETER:

Measure range:50-5000Hz

Inductance: 142MH+25%

Thread Size: 5/8-18 UNF-2A

Tap Drill Size: 37/64 inch

Proximity to Gear Teeth: .028 in min.-.042 in max.(Approximately 1/2 to 3/4 turn)

Temperature Range: -55 deg C to 105 deg C

Output at Cranking Speed: 1.5 Volts AC minimum

Maximum Output: 30 volts AC

Coil Resistance: 300 ohms maximum

Picu up MSP675 5/8-18UNF-2A

Picu up MSP676 5/8-18UNF-2A

Picu up MSP677 5/8-18UNF-2A

Picu up MSP678 5/8-18UNF-2A

Picu up MSP6729 3/8-24UNF-2A

Picu up MSP6719 5/8-18UNF-2A

Picu up MSP6714 M16x1.5

Picu up MSP6724 3/4-16 UNF

Cummins pick up 3034572 5/8-18UNF-2A
