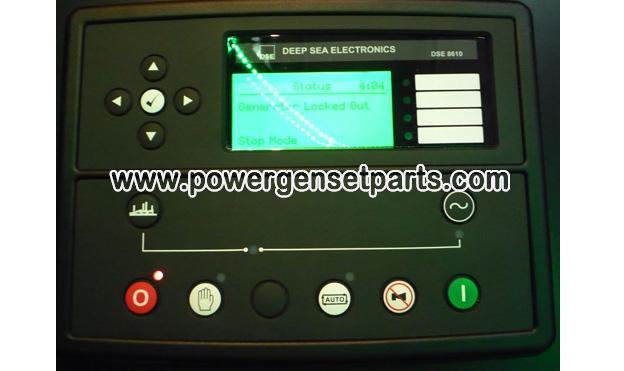

Features
The DSE8610 is an easy to use multi-generator loadshare system, designed to synchronise up to 32
generators including electronic and non-electronic engines.
The DSE8610 monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition. System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.
The event log will record 250 events to facilitate easy maintenance. An extensive number of fixed and
flexible monitoring, metering and protection features are included as well as comprehensive communication and system expansion options.
Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers and alarms. With all communication ports capable of being active at the same time, the DSE8610 is ideal for a wide variety of demanding load share applications.
KEY LOAD SHARE FEATURES:
• Peak lopping
• Sequential set start
• Manual voltage/frequency adjustment
• R.O.C.O.F. and vector shift
• Generator load demand
• Automatic hours run balancing
• Mains (Utility) de-coupling
• Mains (Utility) de-coupling test mode
• Dead bus sensing
• Bus failure detection
• Direct governor and AVR control
• Volts and frequency matching
• kW and kV Ar load sharing
KEY FEATURES
• Comprehensive loadshare capabilities
• Configurable inputs (11)
• Configurable outputs (8)
• Voltage measurement
• Built-in governor and AVR control
• kW overload alarms
• Comprehensive electrical protection
• Magnetic pick-up
• Electronic engine capability
• RS232 amp; RS485 remote communications
• Modbus RTU
• PLC Functionality
• Multi event exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Automatic start/Manual start
• Audible alarm
• Fixed and flexible LED indicators
• Event log (250)
• Engine protection
• Fault condition notification to a designated PC
• Front panel mounting
• Protected front panel programming
• PC configuration
• Configurable alarms and timers
• Configurable start and stop timers
• SMS alert messaging
• Remote monitoring
• Compatible with DSE8700 Series
KEY BENEFITS
• RS232 amp; RS485 can be used at the same time
• DSENet connection for system expansion
• PLC functionality
• Auto voltage sensing
• Five step dummy load support
• Five step load shedding support
• High number of inputs and outputs
• Worldwide language support
• Configuration Suite PC software
• Direct USB connection to PC
• Ethernet monitoring
• USB host
• Data logging amp; trending
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (CRANK)
15 A DC at supply voltage
OUTPUTS C amp; D
8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G
2 A DC at supply voltage
GENERATOR amp; BUS
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
BUILT-IN GOVERNOR CONTROL
MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated
GAIN VOLTAGE
0 V to 10 V DC
Fully isolated
OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
BUILT-IN AVR CONTROL
MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated
GAIN VOLTAGE
0 V to 10 V DC
Fully isolated
OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
DIMENSIONS
OVERALL
240 mm x 172 mm x 57 mm
9.4” x 6.8” x 2.2”
PANEL CUT-OUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
