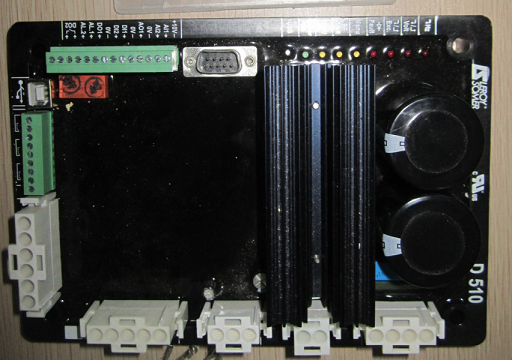

AVR Leroy somer D510 Automatic Voltage Regulator

Product Description

Specifications Digital regulation.
High accuracy, output voltage regulating tolerance

The generator set automatic voltage regulator(AVR) D510C is a digital voltage regulator, which monitors and regulates the alternator output voltage. It is designed for generators with SHUNT, AREP or PMG excitation.

Specification amp; parameters:

Configuralbe input amp; output
1 dry contact and USB port
Voltage regulation accuracy: ± 0.25%.
Function: regulation of voltage, PF, KVAR and manual regulation.
Response time depending on PID settings
Rated field current: 6 A.
Maximum field current: 15 A/10 s.
Power supply range for voltage sensing: up to 530 V.
Protection:Short-circuit / Loss of voltage reference / Overvoltage / Over excitation / High Temperature /Speed drop / Diode fault / Stator current unbalance / Stator current limitation.
Engine assistance
Soft start: 0 - 100 s.
U/F adjustable from 0.5 to 3 in increments of 0.1
LAM: 0 to 30%.
Gradual increase: 0.1 to 30 s/Hz
Grid code function.
Operating temperature: - 40°C to + 65°C.
Storage temperature: - 55°C to + 85°C.
Shocks on the base: 9 g depending on the 3 axes.
Vibrations: less than 10 Hz, 2 mm half-peak amplitude.
10 Hz to 100 Hz: 100 mm/s, above 100 Hz: 8 g.
