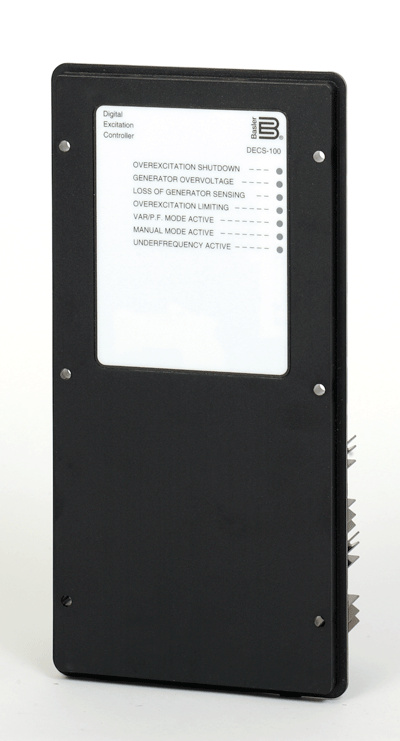

Digital excitation control system DECS-100
Basler Electric offers a high powered, low-cost digital excitation control system, the DECS-100. This environmentally rugged product is ideally suited for controlling the output of brushless excited synchronous generators up to 5MW. The DECS-100 has a very impressive 7Adc output from a pulse width modulated power stage. The DECS-100 is perfect for machines that will be paralleled to other generators and/or to the utility system. It is ideal for distributed generation, co-generation and peak shaving applications. The DECS-100 is easy to use, and it has communications capability with a PC or a personal data assistant running Palm OS 3.3 or newer software. The DECS-100 utilizes microprocssor technology and control algorithms pioneered by Basler Electric over the last 12 years. It shares many features and functions of our larger excitation control systems. The DECS-100 is Basler Electric's fifth generation of microprocessor-based excitation system.
Main features of DECS-100
- Microprocessor based
- 0.25% Voltage Regulation Accuracy
- 0.5% accuracy up to 40% THD (harmonics associated with 6 SCR load)
- 63Vdc @ 7Adc PWM output
- 0-3X V/Hz limiting
- Soft Start capability
- VAR/PF control
- Voltage Matching
- Interface for setting and communicating with Basler products
- UL recognized
- CSA approved
- CE compliant
- Manual Mode (Field current regulation)
- Setup via PC or a PDA using Palm OS 3.3 or newer via BESTCOMS software
- LED Annunciation of operating conditions
- Accessory input
- Alarm Contact Output
- Five generator protection functions including Loss of Sensing transfer to manual
- Power Input from 50/60Hz shunt connections or PMGs operating at 50 to 400Hz
- Nominal sensing inputs of 120, 240, 480 and 600Vac
- Paralleling input from 1 or 5A CT secondaries
- Overexcitation limiting
- 20 standard stability selections and one customizable selection
- 0.5% accuracy up to
