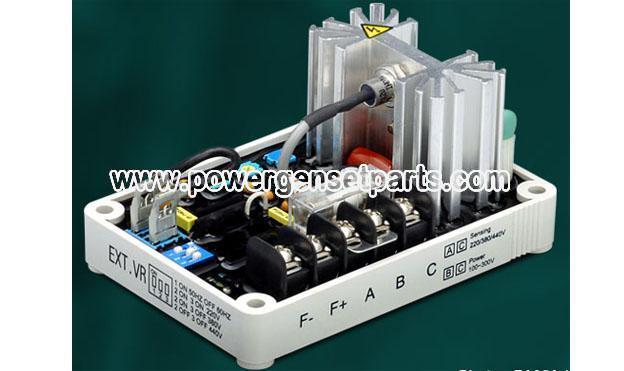

Kutai Generator AVR EA05A EA05A-NL

Name: Kutai Generator AVR EA05A EA05A-NL

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Kutai Generator Automatic Voltage Regulator 5 Amp EA05A / EA05A-NL for Basler KR7, Airman DST-100-2, Markon 36245, Markon MD1C, Petrus 265-06S

EA05A
Generator Automatic Voltage Regulator 5 Amp
EA05A 5 Amp self excited brushless type genset voltage regulator is an universal AVR and compatible replacement for Basler KR7, Airman DST-100-2, Markon 36245, Markon MD1C, Petrus 265-06S.

EA05A-NL (100% Lead Free, Manufactured according to RoHS compliance) 5 Amp self excited brushless type genset voltage regulator is an universal AVR and compatible replacement for Basler KR7, Airman DST-100-2, Markon 36245, Markon MD1C, Petrus 265-06S. The Minimum Ordering Quantity of 100 pcs is set to meet basic production requirement for EA05A-NL.

Features

Voltage Regulation lt; ±0.5%
220/380/440 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Built-in High Capacity 5 Amp Fuse

Specifications

Model NO.	EA05A / EA05A-NL
Sensing Input	Voltage 220/380/440 VAC 1 phase 2 wire DIP switch selectable Frequency 50/60 Hz DIP switch selectable
Power Input	Voltage 100~300 VAC 1 phase 2 wire
Output	Voltage Max. 90 VDC @ 240 VAC input Current Continuous 5A, Intermittent 7A for 10 sec. Resistance Min. 15 Ohm Max. 100 Ohm
Volts Regulation	lt; ±0.5% (with 4% engine governing)
Voltage Build-up	Residual volts at AVR terminal gt; 5 VAC
External Volts Adjustment	7% with 1 K Ohm 1 watt trimmer
Unit Power Dissipation	Max. 8 watt
Soft Start Ramp Time	3 sec.
EMI Suppression	Internal electromagnetic interference filtering
Thermal Drift	0.03% per °C change in AVR ambient
Under Frequency Protection (Factory Setting)	60 Hz system presets knee point at 55 Hz 50 Hz system presets knee point at 45 Hz
Environment	Operating Temperature : -40~70 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 95% Vibration : 3G @ 100~2 KHz
AVR Controls Function	VOLTS : Voltage Adjustment STAB : Stability Adjustment U/F^: To Set the U/F Knee Point (U/F: Under Frequency Protection)
Dimensions	101.0 (L) x 69.0 (W) x 49.5 (H) mm
Weight	183 g ±2%
