Tages:KUTAI EA63-2.5 Generator AVR 63 VDC 2.5 Amp for Basler AVC63-2.5 regulator

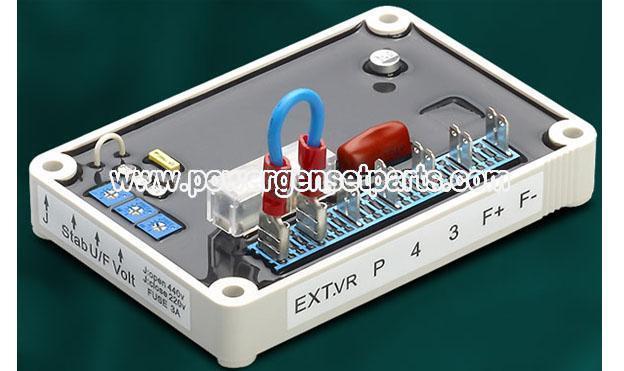

EA63-2.5
Generator Automatic Voltage Regulator 63 VDC 2.5 Amp
EA63-2.5 self excited brushless type genset voltage regulator is a compatible replacement for Basler AVC63-2.5 regulator.
►Features
*Original Basler model AVC63-2.5 cannot be used 120V generators and do not have fuse protection.
Specifications
| Model NO. | EA63-2.5 |
|---|---|
| Input | Voltage 120(90~130) / 240(180~260) VAC 1 phase 2 wire DIP switch selectable Frequency 45~65 Hz |
| Output | Voltage Max. 50 VDC @ 120 VAC input , Max. 63 VDC @ 240 VAC input Current Continuous 2.5A, Intermittent 4A for 60 sec. Resistance Min. 25 Ohm |
| Voltage Regulation | lt; ±1% (within 4% engine governing) |
| Voltage Build-up | Residual volts at AVR terminal gt; 5 VAC |
| External Volts Adjustment | ±15% with 5 K Ohm 1 watt trimmer |
| Unit Power Dissipation | Max. 10 watt |
| EMI Suppression | Internal electromagnetic interference filtering |
| Thermal Drift | 0.05% per °C change in AVR ambient |
| Under Frequency Protection | Knee point adjustable range 45~55 Hz |
| Environment | Operating Temperature : -40~60 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 95% Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz |
| AVR Controls Functions | VOLTS : Voltage Adjustment U/F*: To Set the U/F Knee Point (*U/F: Under Frequency Protection) DIP : 110V/220V option |
| Shock | Withstands up to 20G in each X, Y, Z axes |
| Dimensions | 101.0 (L) x 69.0 (W) x 22.0 (H) mm |
| Weight | 107 g ±2% |
