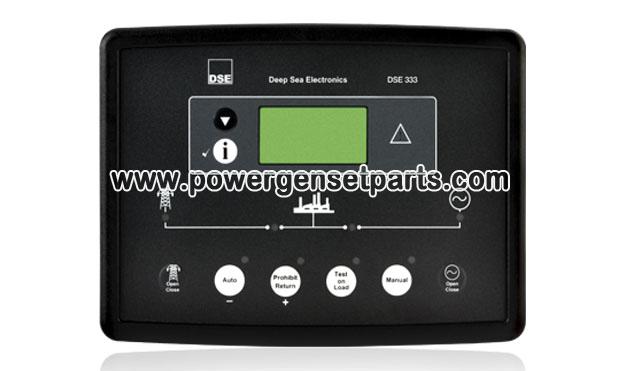

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
292 mA at 12 V, 167 mA at 24 V

MAXIMUM STANDBY CURRENT
101 mA at 12 V, 66 mA at 24 V
MAINS (UTILITY)

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A (MAINS/UTILITY)
Normally closed relay output
8 A AC at 250 V AC

OUTPUT B (GENERATOR)
Normally open volt-free output
8 A at 250 V AC

OUTPUT C (START)
Normally closed volt-free output
8 A DC at 35 V DC (UL Rating 30 V)

OUTPUT D (CHANGEOVER)
Normally open volt-free output
8 A at 250 V AC

OUTPUT E
Normally open volt-free output
8 A at 250 V AC

GENERATOR

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

DIMENSIONS

OVERALL
215 mm x 158 mm x 42 mm
8.5” x 6.2” x 1.6”

PANEL CUT-OUT
182 mm x 137 mm
7.2” x 5.4”

MAXIMUM PANEL THICKNESS
8 mm
0.3”
