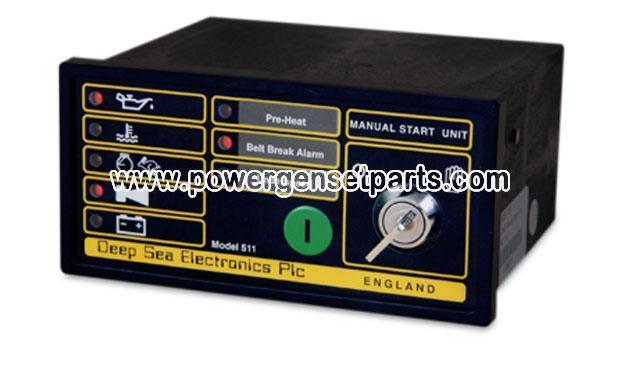

The Model DSE511 is a Manual Engine Control Module which has been designed to allow the OEM to meet
demand for increased capability within the industry. The module is used to start and stop the engine, indicating the operational status and fault conditions; automatically shutting down the engine and indicating the engine failure by means of a flashing LED. Any simultaneous faults are indicated by a
steady LED.

Operation of the module is via a two position key switch mounted on the front panel with STOP and RUN
positions. A START pushbutton is fitted to facilitate engine cranking. Microprocessor control allows
enhanced manual start operation, Crank inhibit if the engine is running, automatic crank disconnect and also a crank limit timer to prevent starter motor damage in the event of a fail to start occurring.

Selected operational sequences, timers and alarms can be altered by the customer. Alterations to the
system are carried out using a PC and the 808 interface. This also provides the operator with real time diagnostic facilities to monitor the operation of the system.
