KEY FEATURES

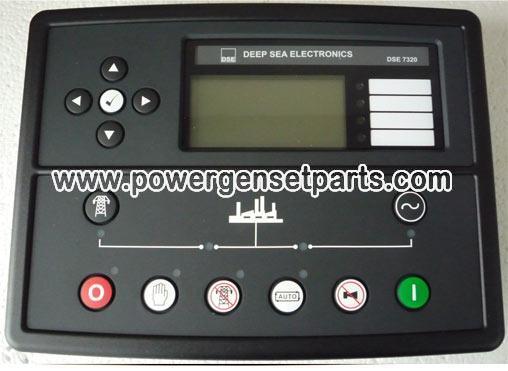

• 4-Line back-lit LCD text display
• Five key menu navigation
• Front panel editing with PIN protection
• LED and LCD alarm indication
• Customisable status screens
• Power save mode
• Support for up to three remote display units
• 9 configurable inputs
• 8 configurable outputs
• Flexible sender inputs
• Configurable timers and alarms
• 3 configurable maintenance alarms
• Multiple date and time scheduler
• Configurable event log (250)
• Control logic facilities
• Easy access diagnostic page
• CAN and Magnetic Pick-up/Alt. sensing
• Fuel usage monitor and low fuel alarms
• Charge alternator failure alarm
• Manual speed control (on compatible CAN engines)
• Manual fuel pump control

• Engine exerciser
• “Protections disabled” feature
• kW overload protection
• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
• Load switching (load shedding and dummy load outputs)
• Automatic load transfer
• Unbalanced load protection
• Independent Earth Fault trip
• USB connectivity
• Backed up real time clock
• Fully configurable via DSE Configuration Suite PC software
• Configurable display languages
• Remote SCADA monitoring via
DSE Configuration Suite PC
software
• User selectable RS232 and RS485 communications
• SMS Messaging (additional external modem required)
• Additional display screens to help with modem diagnostics
• DSENet® expansion compatible

KEY BENEFITS

• 132 x 64 pixel ratio display for
clarity
• Real-time clock provides accurate event logging
• Multiple date and time scheduler
• Set maintenance periods can be configured to maintain optimum engine performance
• Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
• Modules can be integrated into building management systems (BMS)
• Increased input and output expansion capability via DSENet®
• Licence-free PC software
• IP65 rating (with supplied gasket) offers increased resistance to water ingress
