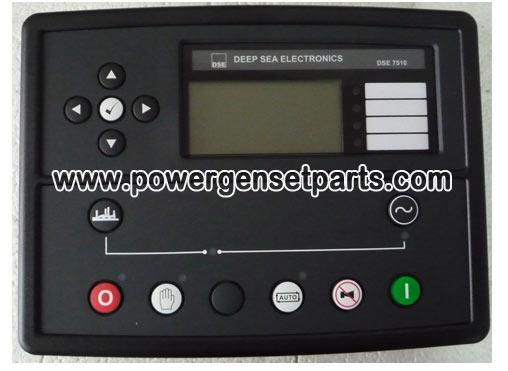

The DSE7510 is an Automatic Engine Control Module, designed to provide advanced load share functionality for diesel and gas generating sets that include electronic and non-electronic engines.
The module’s load share functions include automatic synchronising with built-in synchroscope and closing onto dead bus. Direct and flexible outputs from the module are provided to allow connection to the most commonly used speed governors and automatic voltage regulators (AVRs).
A sophisticated module monitoring an extensive number of engine parameters, the DSE7510 will annunciate engine shutdowns, warnings, and engine status information on the back-lit LCD screen, by illuminated LED, on a remote PC, by audible alarm and via SMS text alerts (GSM modem required). The module includes RS232 and RS485 ports as well as dedicated terminals for system expansion.
KEY LOAD SHARE FEATURES
• Fixed export with mains (utility)
• Synchronising up to 16 generators
• Sequential start
• Auto ID negotiation
• Direct governor and AVR communication and control
• Manual voltage, frequency and speed adjustment
• Volts and frequency matching
• Dead bus sensing
• Generator load demand
• kW and kV Ar load sharing
• kW on mains (utility) level
• Automatic hours run balancing
• R.O.C.O.F amp; Vector Shift
• Mains (utility) decoupling test facility
KEY FEATURES
• 4-Line back-lit LCD text display
• Five key menu navigation
• Front panel editing with PIN protection
• Multiple display languages
• LED and LCD alarm indication
• Customisable status screens
• 9 configurable inputs
• 5 configurable outputs
• Configurable timers and alarms
• Multiple date and time scheduler
• Event log (25)
• CAN and Magnetic Pick-up/Alt. sensing
• Engine protection alarms
• Low fuel alarms
• Charge Alternator failure warning
• Manual speed control (on compatible CAN engines)
• Engine exercise scheduler
• Automatic load transfer
• kW overload protection
• Unbalanced load protection
• Independent Earth Fault trip
• Audible alarm
• Backed-up real-time clock
• Fully configurable via by DSE7500 PC software
• Configurable display languages
• Remote SCADA monitoring via DSE7500 PC software
• User selectable RS232 and RS485 communications
• SMS Messaging (additional external modem required)
• Built-in governor and AVR control
KEY BENEFITS
• 132 x 64 pixel ratio display for clarity
• Real-time clock provides accurate event logging
• Remote monitoring of module using comprehensive DSE7500 PC software
• Sends SMS messages to notify engineers of specific generator problems (GSM modem and SIM card required)
• Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
• Modules can be integrated into building management systems (BMS)
• Surplus energy / power can be sold back to the grid (subject to local mains/utility supplier)
• Licence-free PC software
• IP65 rating (with supplied gasket) offers advanced resistance to water ingress
