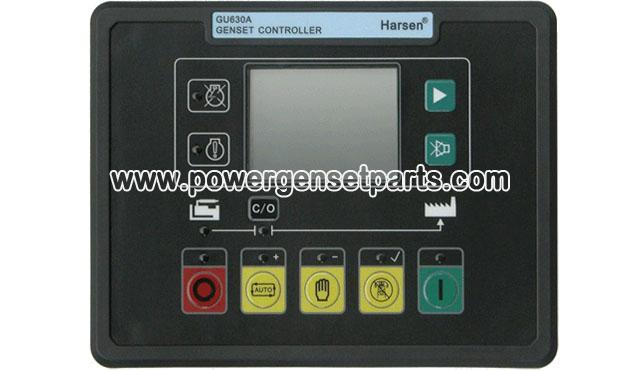

GU630A is a new generation Automatic controller for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves

the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.

l True RMS measure of voltage and current.

l Multi-language menu.

l 128 x 64 pixel LCD display.

l With calendar and clock.

l Event and measuring parameter logs with read time.

l Exercise run schedule.

l Genset maintenance schedule.

l 4 analog inputs can be used to measure pressure, temperature, fuel level and so on; optional kinds of internal sensors and parameters are configurable.

l More configurable auxiliary control relay outputs.

l More configurable isolating digital inputs.

l Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data, and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status.

l Flexible equipped with communication interface of RS485, RS232 or USB, realizing remote monitor or communication with PC, fully realizing functions of remote signaling, telemetering and remote control, can read and configure the operating parameters of controller.

l With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB port for remote communication.

l Optional CANbus, reading and controlling the parameters of ECU engine.

l All connections of controller are connected by pin locked up terminals, easier and more convenient to connect, move, maintain and replace the device.

AUTO operation mode / parameters setting for value increase

MAN operation mode/ parameters setting for value decreas

TEST operation mode / parameters setting for confirmation

Start button

Stop/Reset button

Mute button

Gen Close/Open button

Button (parameters setting / scroll menu)

Pre-alarm LED

Shutdown Alarm LED

AUTO operation mode LED

MAN operation mode LED

TEST operation mode LED

Genset start running LED

Stop/Fail to stop LED

Gen. Normal LED

GCB closed LED

Totally 7 ways, configurable inputs

Control Relay Output:

Fuel control output

Start (Crank) control output

Configurable auxiliary control relay outputs (totally 5 ways)

Speed Control Function: controller controls the spee motor of engine and regulates the size of fuel vi continuously output speed raise/lower switch control sign with PID function, making engine°s running speed stabil within the setting range. Ultra Low Temperature Function: controller fitted with this function can be operated under the ambien temperature from -40 to 70°.
