Tages:Harsen Genset Controller GU308B

Description:

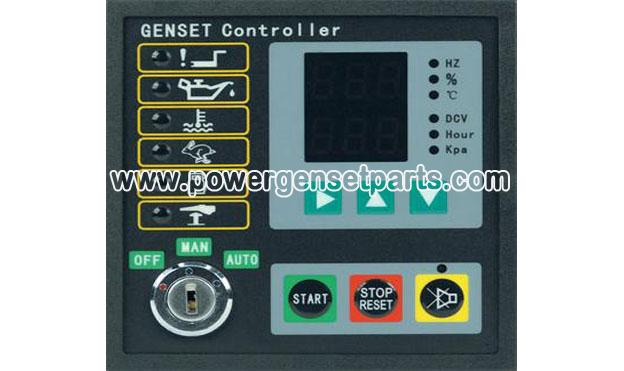

GU308B is an economical Genset auto controller, can select control mode by key switch on controller panel. In manual mode, can manual start and stop Genset by start and stop button on the panel, also can set the key switch on the panel in auto mode, start and stop Genset by remote signal is active or not. Display the running status of Genset by panel LED. Display the measured parameter of engine by LED. Controller has base protection function, make sure engine will not damage during running. Flexible configure running protection parameters by buttons and LCD on panel. The controller adopted DIN96 standard enclosure, all connections are connected by pin-like and locked up terminal, easier and more convenient to install, connect, move and displace the device.

Operation Panel W96mm×H96mm

Install Hatch W91mm ×H91mm

Thickness D61.5mm（unconnected）
