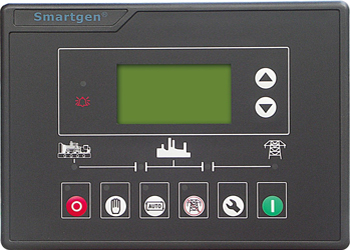

HGM6010K Genset Controller

overview
HGM6000K series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display, character and icon display interface with operation easy and reliable.

HGM6000K series generator controller uses micro-processing technique which can carry out precision measure, constant value adjustment, timing and threshold setting and etc. of multi-parameters. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability.
performance and characteristics

HGM6000K controller has two types:

HGM6010K: ASM (Automatic Start Module)

HGM6020K: AMF (Automatic Mains Failure Module)

Its main features are as follows:

Using microprocessor as a core, graphics LCD with big screen and backlight, display between Chinese, English, and Spanish, key touch for operation;

Have a RS485 port, can used for communicate with PC;

Configurable single phase 2 wires or 2 phase 3 wires or 3 phases 4 wires AC system input;

Control protection: Automatic start/stop, load transfer and alarming of generator;

Parameters setting: Allow user to modify setting and store them inside internal FLASH memory, the parameters can not be lost even with power down. All parameters can be set from the front panel, or be set by PC used SG72;

Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select “user defined” sensor via entering 8 point curves;

Display of generator cumulated electric energy;

Security password-protected programming levels;

Several crank success conditions are optional;

Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed;

Power supply range is wide, accommodating to different starting battery voltage environments;

All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;

Built-in watch dog can never be dead halt, ensuring smooth program execution;

Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation.
