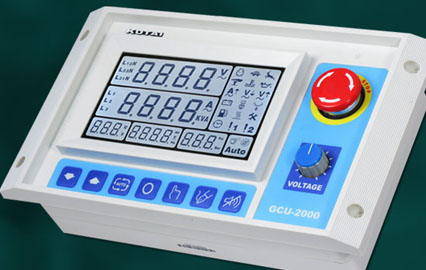

GCU-2000 Digital Genset PLC Control Unit

Name: GCU-2000 Digital Genset PLC Control Unit

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:GCU-2000 Digital Genset PLC Control Unit

GCU-2000

Digital Genset PLC Control Unit

The GCU-2000 is the advanced Digital Genset PLC Control Unit. It delivers full genset warning and protection and equipped with most accurate water temperature and oil pressure sensor available on the market. The design is to be operation friendly with extra large easy to ready LCD display and graphical warning icons. The module requires no addition connection to a PC, all function settings can be programmed directly on the front panel. It's compatible with Deep Sea 5510 and Deep Sea 5620.

Features

Micro-Processor Auto Control amp; Protection
Easy to Read Large LCD Display
Modularity Design, Easy to Install
Provide Accurate Temperature and Oil Pressure Display
Provide Full Engine amp; Generator Alarms Signals shutdowns
All Functions Setting Can Be Done Directly On GCU-2000 No Need For PC Connection^*1
Provide Emergency Stop and Voltage Adjustment On Front Panel
Total Of 15 Memorable Event Logs^*2

*1 Customized settings are auto-saved into memory and will remain even when power is off.
*2 Provide gen-set run-in modulate model and manual start and stop functions, when user proceed modulate controller will shut down all protect functions.

Specifications

Model NO.	GCU-2000
Power Input	Voltage 9~36 VDC (12V , 24V)
Sensing Input	Voltage 15~500 VAC 3 phase 4 wire Frequency 50~60 Hz
Power Dissipating	Max. 7 watt
MPU Signal Input	Voltage ±2 ~ ±70 VAC Frequency Min. 100 Hz , Max. 10 KHz
CT Specifications	Burden 2.5 VA
Protection amp; Alarm Status	Engine Start Failure Engine Over Speed Sensor Failure Abnormal AC Voltage Low Engine Oil Pressure Emergency Stop Activated High Engine Temperature MPU Failure Generator Over Load Abnormal Battery Voltage
Large LCD Display	Programmable Display with 3 Phase Volts,Amp amp; Freq. Engine Operation Hours amp; Battery Voltage Display Can Display Different Unit Of Temperature amp; Oil Pressure Failure Signal Status By Graphic Display
Environment	Operating Temperature : -20~70 °C Relative Humidity : Maximum 95% Max. Vibration : 5~25 Hz , ±1.6 mm 25~100 Hz , a=4g
Panel Installation Cut-Out	251.5 x 157.0 ±0.5 mm
Dimensions	290.0 (L) x 166.0 (W) x 70.0 (H) mm
Weight	1341 g ±2%
