GCU-100 Generator Automatic Control and Protection Module

Name: GCU-100 Generator Automatic Control and Protection Module

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:GCU-100 Generator Automatic Control and Protection Module

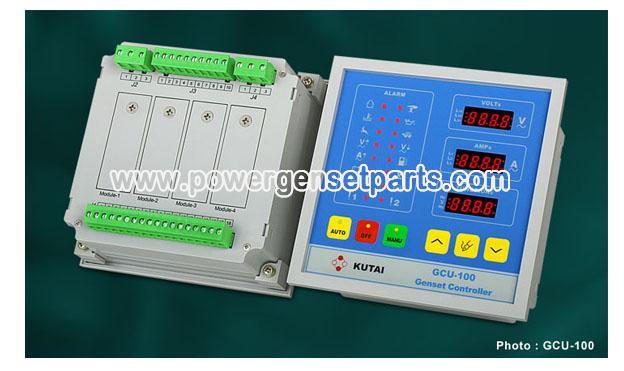

GCU-100

Generator Automatic Control and Protection Module

GCU-100 Generator Automatic Control and Protection Module is suitable for most generators available on the market, it is equipped with graphical warning signals and 3 sets of 4 digits LED display to display the real time 3 phase voltage, current, frequency, battery volt, running hours and setting values.

Features

Micro-Processor Auto Control Protection
Three Sets of High Illuminating LED Display Suitable for Indoor and Outdoor Use
Full Function Modularized Design for Easy Installation
All Functions Setting Can Be Done Directly On GCU-100 No Need For PC Connection^*
All settings are recorded into the internal (EEPROM) and protected from erasure even without battery
Easy to Understand Graphical Warning Signals
Din Rail Terminal For Easy Installation
IP65 Waterproof Front Panel

*User can Program, Change and Cancel Protection and Warning Settings according to the requirement

Specifications

Model NO.	GCU-100
Power Input	9~35 VDC (12V , 24V)
Sensing Input	Voltage 15~510 VAC Frequency 50/60 Hz
Power Dissipation	Max. 5 watt
MPU Signal Input	Voltage ±2 to ±70 VAC Frequency Min. 100 Hz , Max. 10 KHz
CT Specification	Burden Above 2.5 VA
CT Secondary Ratio	5A
Protection amp; Alarm Status	Engine Start Failure Emergency Stop Activated High Engine Temperature Low Engine Oil Pressure Engine Over amp; Under Speed Abnormal AC Volt Generator Over Load Low Fuel Level Charge Motor Failure Abnormal DC Volt Scheduled Maintenance Warning Free Programmable warning
Panel Display	Fixed or Circulating Full Phase Voltage, Current and Frequency Engine Operation Hours DC Voltage (Battery) Delay Countdown Display
Environment	Operating Temperature : -20~70 °C Relative Humidity : Maximum 90% Max. Vibration : 5~25 Hz , ±1.6 mm , 25~100 Hz , a=4g
Panel Installation Cut-Out	137.0 x 137.0 ±0.5 mm
Dimensions	147.8 (L) x 147.8 (W) x 62.3 (H) mm
Weight	604 g ±2%

*Note : All features amp; specifications subject to change without notice.
