Tags:Cummins EFC Speed governor 3037359 for Genset NTA855 and the compatible actuator 3408328

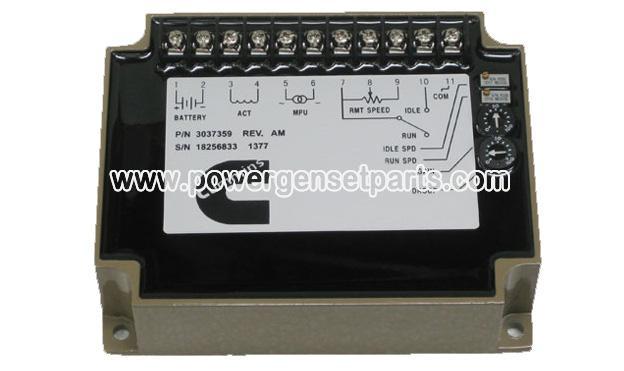

Speed governor 3037359

Electronic fuel control(EFC) , part number:
3044195, 3032733, 3037359, 3062322, 3098693, 4914090, 4914091

SPECIFICATION:
RPM Stability: lt;± 0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ± 0.7%
IDLE Regulation: 260 ± 20Hz
DROOP Regulation: Minimum 15Hz ± 6Hz/ 1 Amp
Maximum: 400Hz ± 75Hz/ 1 Amp
External Speed Regulation: ± 200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ± 10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85

ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100Hz 500mm/Sec.

INPUT POWER SUPPLY
Voltage: 12V or 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A

MPU
Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.

Speed governor 3037359
