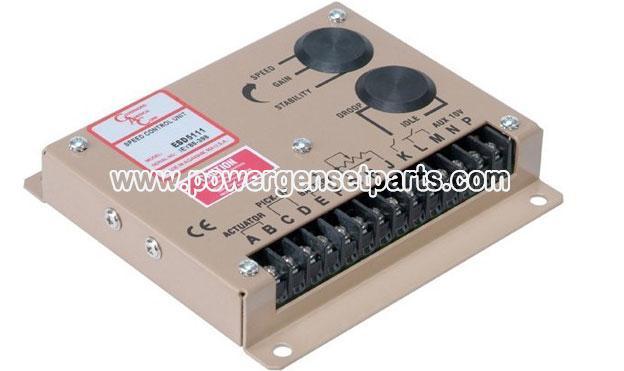

GAC Speed Governor ESD5111

Name: GAC Speed Governor ESD5111

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Speed Control Unit ESD5111 / GAC Speed Governor ESD5111

Specifications

Speed Control Unit ESD5111
same function as GAC ESD 5111
ISO9001 Quality System Certification

Speed Control Unit ESD5111 / GAC Speed Governor ESD5111
ESD5111 series speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines.

It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference.
In the design, installation and a simple pre-adjustment, including the transfer rate and adjustable idle for assistance or for multiple special-purpose machine input, as well as to prevent reverse battery voltage, the transient voltage pulse, the actuator short-circuit fault And the loss of power or speed sensor signal of the security protection

PERFORMANCE
Isochronous Operation/Steady State Stability	± 0.25% or better
Speed Range/Governor	1K-7.5K Hz continuous
Speed Drift with Temperature	± 1% Maximun
Idle Adjust CW	Min. 1200Hz. below set speed
Idle Adjust CCW	Min. 4100Hz. below set speed
Droop Range	1-5% regulation
Droop Adj. Max. (K-L Jumpered)	875Hz., ± 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered)	15Hz., ± 6Hz. per 1.0 A change
Speed Trim Range	± 200Hz.
Remote Variable Speed Range	500 -7.5Hz. or any part thereof
Terminal Sensitivity	J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance
	L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
	N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
	P: 10V DC Supply @ 20ma Max.
Speed Switch Adjustment Range	1000-10000Hz.
ENVIRONMENTAL
Ambient Operating Temperature Range	-40°c to +85°c
Relative Humidity	up to 95%
Storage Temperature	-55°c ~ 90°c
Shock	20-100HZ 500mm/Sec.
INPUT POWER
Supply	12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity	Negative Ground(Case Isolated)
Power Consumption	50mA continuous plus actuator current
Maximum Actuator Current at 25	10Amps continuous
Speed Sensor Signal	0.5-120 Volts RMS
PHYSICAL
Weight	630g

Note: The performance parameters in the frequency when measuring 4000Hzv
