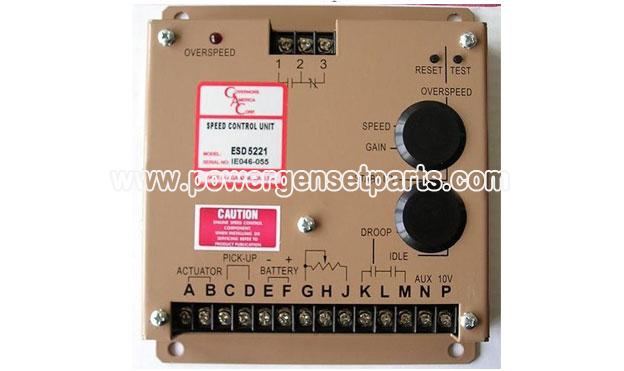

GAC Electric Governor ESD5221E

Product Description
GAC ESD5220 SERIES SPEED CONTROL UNIT SPECIFICATIONS
The ESD5200 Series speed control unit is an all electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.
Simplicity of installation and adjustment was foremost in the design. Non-interacting performance controls allow near optimum response to be easily obtained.
Other features include; Adjustable droop and idle operation, inputs for accessonries used in multi-engine or speacial applications, protection against reverse battery vollage, transient voltages, accidental short circuit of the actuator and fail-safe design in the event of loss of speed sensor signal or battery supply.

FERFORMANCE
Isochronous Operation/Steady State Stability: ± 0.25% or better
Speed Range / Governor: 1K-7.5K Hz continuous
Speed Drift With Temperature (Governor and Speed Switch): ± 1% maximum
Idle Adjust CW: Min, 1200 Hz below set speed
Idle Adjust CCW: Min, 4100 Hz below set speed
Droop Range: 1-5% regulation
Droop Adj. Max (H-G and K-L Jumpered): 875Hz., ± 75Hz. Per 1.0A change
Droop Adj. Max ( H-G Open, K-L Jumpered): 15Hz., ± 6Hz. Per 1.0A change
Speed Trim Range: ± 200Hz
Remote Variable Speed Range: 500-7.5K Hz, or any part thereof

Speed Switch Adjustment Range: 1000-10000 Hz

ENVIRONMENTAL
Ambient Operating Temperature Range: -40° +180° F (-40° ~85o C)
Relative Humidity: Up to 95%
All Surface Finishses: Fungus proof amp; corrosion resistant

INPUT POWER
Supply: 12 or 24VDC Battery Systems (transient amp; reverse voltage protected)
Polarlty: Negative ground (Case isolated)
Power Consumption: 50 ma continuous plus actuator current
Actuator Current Range @ 25o C(77° F): Min. 2.5Amps Max. 10 Amps continuous
Speed Sensor Signal: 0.5-120 Volts RMS
Speed Switch Relay Contacts (N. O. And N. C. ): 10 Amps

RELIABILITY
Vibration: 1G @ 20-100Hz
Testing: 100% Functionally tested

PHYSICAL
Dimensions: See outline (FIGURE 1)
Weight: 1.8 Ibs. (820 grams)
Mounting: Any position, vertical preferred
