INTRODUCTION

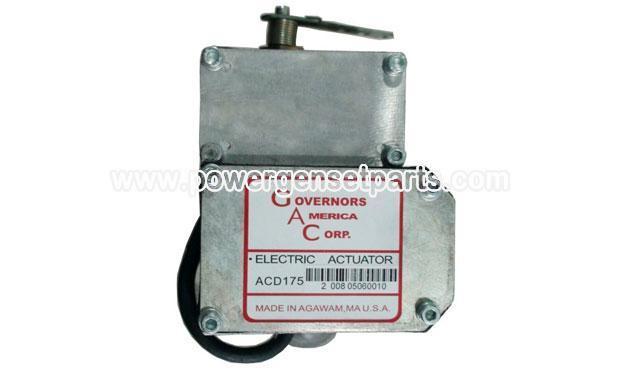

The 175 Series electric actuator is designed to mount directly on a Bosch P size fuel injection pump, with a right hand rack, in place of the mechanical governor. When the 175 actuator is installed on the fuel pump, an optimum performance, long life fuel control system results. An external fuel shut off lever is provided to manually override the actuator´ S control. Also provided is an adjustable internal maximum fuel limit.
The 175 Series electric actuator can control fuel pumps of up to 8 cylinders. The actuator was designed with two isolated chambers. The upper chamber is wet with oil and contains the connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber contains the electromagnetic components.
This design eliminates the possibility of magnetic particles or other oil contaminants interfering with the operation of the electric actuator. Unreliable devices such as bellows and sliding seals are not used so that no maintenance is required. The designed life of the actuator is typically longer than that of the engine.
The 175 SERIES actuator can also be supplied with a position sensor that allows the actuator to be used in a fuel management system.

SPECIFICATIONS
PERFORMANCE
Force: 6.2 Ib. (27.5 N)
Operating Stroke: 0.80 in. (21 mm)
Response Time (10-90%, 2-19 mm): 35 msec

POWER INPUT
Operating voltage: 12 or 24 VDC
Normal Operating Current: 4 A at 12 VDC
2 A at 24 VDC
Maximum Current-Continuously Rated: 5.8 A at 12 VDC
3.1 A at 24 VDC

ENVIRONMENTAL
Operating Temperature: -40 to +200· F (-40· To +95º C)
Relative Humidity: Up to 100%
Vibration: 20g. 20-500Hz
Shock: 20g @ 11 msec.

PHYSICAL
Weight: 4.75 Ib. (2.2 kg. )
Mounting: Requires camshaft bearing retainer kit
P3000 pump: KT275
P7000 pump: KT276
Mating Connector: EC1300
Mating Cable Harness: CH1215
