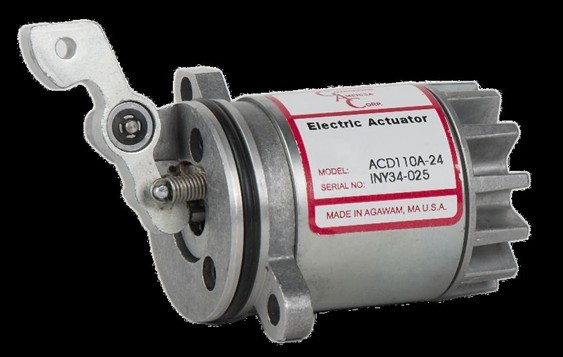

Gac Electric Actuator ACD110 24V,ACD110-24

110 Series - 12 or 24 VDC / Deutz 1011

24VDC / Deutz 1011 Packard Connector

The 110 Series Integral Actuator is designed to mount di-
rectly to DEUTZ 1011 series 2, 3 and 4 cylinder engines
in place of the electric stop solenoid. It exhibits high quality
construction and is designed for high temperature operation.
GAC’s unique linear electromechanical technology provides
proportional actuator movement, based on actuator coil cur-
rent.
ImporTAnT: When applying the 110 Series actuator to
DEUTZ 1011, 4 cylinder engines, The engine must be
equipped with DEUTZ’S extra start fuel spring 04174748.
This unique, optimum fuel control, actuating device will out-
perform externally mounted types of electric actuators. An
integral’ high performance speed control system results
when the 110 Series electric actuator in installed on the en-
gine and electrically connected to complementing governor
system components. no external linkages or brackets are
required and no extra DEUTZ parts are needed. In addition,
when the governor system is de-energized, the 110 Series
electric actuator performs as a fuel shut off solenoid.
DEUTZ AG has approved the use of this actuator design for
their 1011 Series engines. The 110 Series Electric Actua-
tor is simple to install and is ideal for variable and constant
speed engine governing applications (e.g.: Compressors,
Generator Sets, pumps, etc.).
