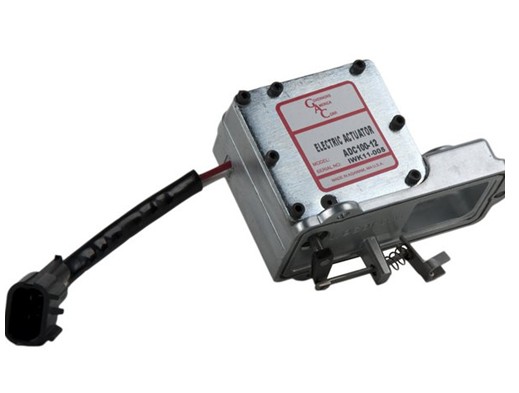

GAC actuator ADC 100-24

GAC actuator ADC100-24

SPECIFICATIONS:
PERFORMANCE:
Available Torque Max1.0Lb-ft(1.4Nm)
Maximum Operating Shaft Angular Travel 25+1degree CW/CCW
POWER INPUT:
Operating voltage 12VDC
Normal Operating Current 2 A at 12VDC
1 A at 24VDC
Maximum CurrentContinuously Rated 6 A at 12VDC
3 A at 24VDC
ENVIROMENTAL:
Temperature Range -54 to 95
Relative Humidity up to 100%
All Surface finishes Fungus proof and corrosion resistant
PHISICAL:
Weight 2.3 kg
Mounting Any position, electrical connector at the top preferred
RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% Tested
MATING HARDWARE
Connector Supplied With Actuator
Lever LE1500-2
Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)
BR101(Left Hand)
Wiring Harness HD120 4ft. Harness supplied with actuator, other length available from Actuator
