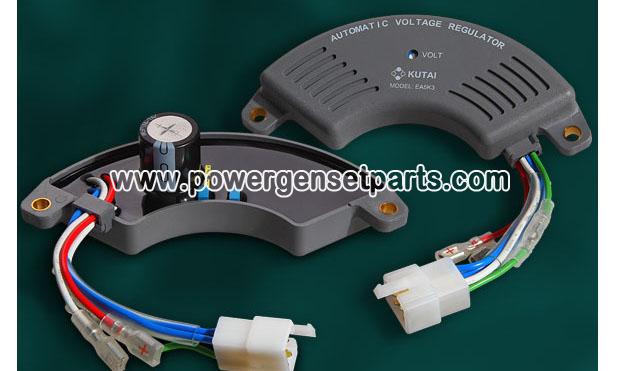

Slip Ring AVR for Small Diesel Gasoline Generator EA5K3

Name: Slip Ring AVR for Small Diesel Gasoline Generator EA5K3

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Slip Ring AVR for Small Diesel amp; Gasoline Generator EA5K3

EA5K3

Slip Ring Automatic Voltage Regulator for Small Diesel amp; Gas Generator

EA5K3 is a slip ring half moon shaped AVR for gas and diesel generators. It can replace avrs for ELEMAX, HONDA, KAWSAKI, KUBOTA Low Boy, SUZUKI, SAWAFUJI, YAMYHA generators.

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturer.

Compatible Replacement for

Brand	Model
KUBOTA	GL6500S
YAMAHA	EDL6500S
HONDA	EP3800 , EP5000 , EC6500
KAWASAKI	GE4300A , GE500AS , PP4000 , PP6000
SUZUKI	LTZ400
SAWAFUJI	SH4600EX , SH5300EX , SH6500EXS , SH7600EX
ELEMAX	SH4000 , SH5000 , SH6000 , SH7000

*Note : All features amp; specifications subject to change without notice.

Features

Voltage Regulation lt; ±1%
Full Wave Rectifier
Single Phase Voltage Sensing
Epoxy Encapsulated to Isolate Humidity and increase Vibration Proof
Adjustable Output Voltage^*
Light Weight, Durable and Economical

*The output voltage from the gasoline type generator’s original AVR is fixed (Unadjustable).

Specifications

Model NO.	EA5K3
Sensing Input	Voltage 16 to 25 VAC 50/60 Hz single phase 2 wire
Power Input	Voltage 60 to 100 VAC 50/60 Hz single phase 2 wire
Output	Voltage Max. 100 VDC @ 85 VAC Current Continuous 3A, Intermittent 5A for 60 sec. Resistance Min. 25 Ohm
Voltage Regulation	lt; ±1% (within 4% engine governing)
Voltage Build-up	Residual voltage at AVR terminal gt; 2 VAC
Voltage Adjust Range	115/230 VAC ±15%
Thermal Drift	0.05% per °C change in AVR ambient
Environment	Operating Temperature : -20°C~65°C Storage Temperature : -40~85 °C Relative Humidity : Maximum 90% Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 KHz
Dimensions	64.5 (L) x 158.2 (W) x 40.0 (H) mm
Weight	190 g ±2%

*Note : All features amp; specifications subject to change without notice.
