Lovol 1004G 1004TG Spare Parts

Name: Lovol 1004G 1004TG Spare Parts

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Lovol 1004G 1004TG Spare Parts

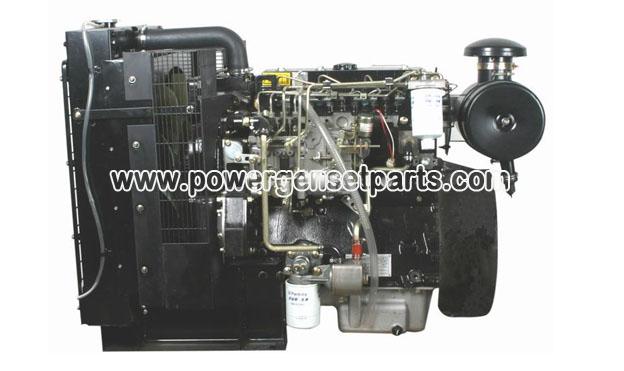

1004G / 1004TG Lovol(Perkins) G-Drive Engine Parts

SetPart Number	Part Number	Part Discription	SetPart Number	Part Number	Part Discription
AC10A004	TC3711H121Z	CYLINDER BLOCK ASSY	AC10C049	T31126391	BEARING
	T3711H121	CYLINDER BLOCK	AC10C052	T31126381	BEARING
	T3135X063	LINER	AC10C055	T31126371	BEARING
			AC10C058	T31126361	BEARING
			AC10C061	T31126391	BEARING
	T32166329		AC10C064	T31126381	BEARING
BOLT			AC10C067	T31137551	THRUST WASHER
			AC10C070	T31137561	THRUST WASHER
	T3271H004A	IDLER SHAFT	AC10D005	T3135J181ETC	PISTON
	T3774A004	PLUG	AC10D008	T4181A026	PISTON RING
	T33142111	THIMBLE		T3136J051	AIR RING
	T32418122	PLUG		T3136X021	AIR RING
	T0650710	PLUG		T3137N021	OIL RING
	T32418124	PLUG	AC10D019	T3313T005	PIN
	T3133K021	BEARING CAP	AC10D022	T2721332	CIRCLIP
	T3133K022	BEARING CAP	AC10D028	T4115C211	CONNECTING ASSEMBLY
	T3133K023	BEARING CAP		T3133R001	CONROD
	T3133K024	BEARING CAP		T3133V001	CAP
AC10A064	T31134165	BUSH		T32186142	SCREW
AC10A115	T32416119	PLUG		T2135A001	DOWEL
AC10A121	T32417134	PLUG		T3112E005	SMALL END BUSH
AC10A124	T64404002	PLUG	AC10D056	T31132011	CONROD BEARING
AC10A325	T32168212	PLUG
AC10A328	T72101002	WASHER	AC10E004	T3681E033	GASKET
AC10A373	T2418F701	REAR HOUSING	AC10E005	T3712H074Z	CYLINDER HEAD ASSY
AC10A400	T3211C002	SCREW		T3712H074	CYLINDER HEAD
AC10A439	T3211C002	SCREW		T3324E003	INLET VALVE SEAT
AC10A173	T0650588	PLUG		T3314A122	OUTLET VALVE SEAT
AC10A176	T0650588	PLUG		T0650586	PLUG
				T0650203	PLUG
AC10J004	T0500012	KEY		T2431154	PLUG
AC10J007	T3117C061	GEAR		T2411157	WASHER
AC10J013	T33426161	HUB		T0650710	PLUG
AC10J031	T4111A013	GEAR		T32417121	PLUG
	T3117L061	IDLER GEAR	AC10E037	T3343F041	INLET VALVE GUIDE
	T0050345	BUSH	AC10E040	T3343J021	OUTLET VALVE GUIDE
AC10J054	T3241H009	PLATE	AC10E064	T2114A046	DOWEL
AC10J069	T2314J010	SCREW	AC10E100	T32166219	SCREW
AC10J129	T4111A021	LUB OIL IDLER GEAR ASSY	AC10E103	T32166221	SCREW
	T3117A051	GEAR	AC10E106	T32166222	SCREW
	T2511437	BUSH	AC10F001	T3142L072	INLET VALVE
AC10J144	T33123125	WASHER	AC10F004	T33817117	SEAL
AC10J150	T2722A206	CIRCLIP	AC10F007	T31745122	SPRING
AC10J180	T31415363	CAMSHAFT	AC10F007	T31744133	SPRING
AC10J183	T33153121	PLATE	AC10F013	T33415118	WASHER
AC10J189	T2116053	DOWEL	AC10F016	T33424107	VALVE CAP
AC10J195	T0500012	KEY	AC10F019	T33173108	COTTER
AC10J201	T3117L023	GEAR
AC10J207	T2314J606	SCREW
AC10J214	T3321A003	WASHER	AC10F025	T3142A051	EXHAUST VALVE
AC10B563	T2314F003	SCREW	AC10F028	T33817117	SEAL WASHER
			AC10F031	T31745122	SPRING
			AC10F034	T31744133	SPRING
			AC10F037	T33415118	WASHER
			AC10F043	T33424107	CAP,INLET VALVE SPRING
			AC10F046	T33173108	COTTER
AC10B001	T3681P009	JOINT	LD22P***	T74401045	BRACKET
AC10B010	T3716C127E	TIMING CASE
AC10B037	T2314H003	SCREW
AC10B040	T2314H034	SCREW 135TiA02、07	AC10F052	T2313H331	STUD
AC10B040	T2314H004	SCREW 135TiA10、12	AC10F058	T2318A605	NUT
AC10B274	T3681P029	JOINT	AC10F061	T2314J607	SCREW
AC10B277	T3716M073	FRONT COVER	AC10F070	T3818X901	BRACKET
	T2418F436	SEAL	AC10F082	T31411124	ROCKER SHAFT
AC10B316	T2314H005	SCREW	AC10F091	T0650507	PLUG
AC10B320	T2314H004	SCREW	AC10F103	T4115R306	LEVER ASSMBLE
AC10B325	T2314H034	SCREW 135TiA02、07		T3737A161	LEVER
AC10B325	T2314H004	SCREW 135TiA10、12		T3271A005	WASHER
AC10B350	T2314H034	SCREW 135TiA02、07	AC10F109	T4115R305	LEVER ASSMBLE
AC10B350	T2314H004	SCREW 135TiA10、12		T3737A171	LEVER
AC10B436	T2314H013	SCREW		T3271A005	PAD
AC10B508	T3753R211	INSPECTION COVER	AC10F127	T32114145	SCREW
AC10B508	T3682H003A	JOINT	AC10F130	T0576052	NUT
AC10B511	T2314F036	SCREW 135TiA02、07	AC10F133	T31744123	SPRING
AC10B511	T2314F006	SCREW 135TiA10、12	AC10F136	T31743108	SPRING
AC10B560	T3781N042	DAMPING JOINT	AC10F163	T33117434	WASHER
AC10B561	T3781N043	ACOUSTIC BOARD	AC10F166	T0170151	CIRCLIP
			AC10J239	T3142U031	TAPPET
AC10C005	T31315681	CRANKSHAFT	AC10J257	T31434307	TAPPET
AC10C044	T31126391	BEARING	AC10F	T3775E012	CONNECTION
AC10C046	T31126381	BEARING	AC10F	T2233022	SCREW
AC10C049	T31126391	BEARING	AC10F	T33811113	OLIVE
AC10C052	T31126381	BEARING	AC10F	T3311K015	WASHER
