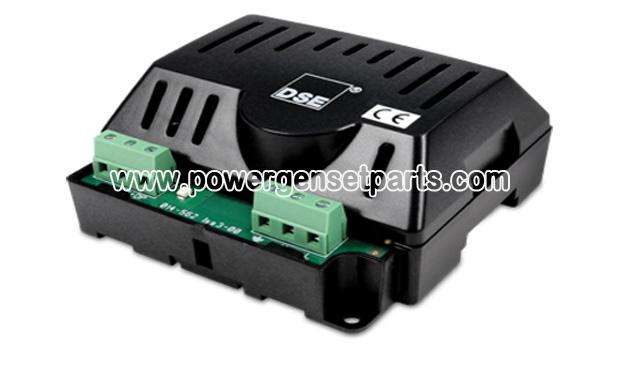

Tages:5 Amp 24 Volt Battery Charger DSE9255
Features
The 5 Amp Battery Charger has been designed to be permanently connected to a battery, keeping it charged to maximum capacity.
The chargers can be either mounted via DIN rail or to the chassis, using the fixing holes that are built into the case. The chargers stylish design includes an LED indicator on the front that shows when the charger is in a normal or overload condition.
The chargers do not include any moving parts to give added durability and reliability. They will also continue to operate during cranking and running. All chargers can accept multiple AC voltage connections.
ADVANCED FEATURES
Multi-Stage Intelligent Charging
• Constant current- Maximum
current available during charge
recovery phase
• Constant voltage
• Chargers automatically return to
float mode when charging is complete
Low Output Ripple
• Makes the chargers ideal for all
battery types
Full Protection
• Reverse polarity protection,
short circuit protection and current limiting
• Automatic recovery after the removal of fault conditions
Boost Mode
• Boosts and equalises cell
charge improving battery
performance and life
• Simple boost connection using
on-board terminals
Power Save Mode
• Once the battery is fully
charged the chargers switch to
Eco-Power to save energy
KEY BENEFITS
• Suitable for a wide range of battery types
• No moving parts for longer battery charger life
• Switched mode design
• Charge fail output
• Minimum 80% efficiency throughout full operating range
Paralleling Feature
• Multiple modules can be linked
together to provide larger current
output
AC SUPPLY
VOLTAGE RANGE
90 V to 305 V (L-N)
DC OUTPUT
5 A DC 24 V DC at 27.4 V DC
RIPPLE AND NOISE
lt;1%
EFFICIENCY
gt;80%
REGULATION
LINE
lt;0.001% Vo
LOAD
1% Vo
PROTECTIONS
Short Circuit
Over Voltage
Over Current
Reverse Polarity
DIMENSIONS
OVERALL
136 mm x 140 mm x 63 mm
5.4” x 5.5” x 2.5”
WEIGHT
0.5 kg
