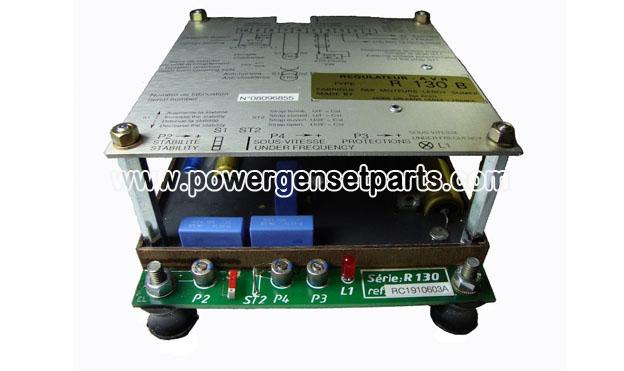

Tags:AVR Leroy somer R130 Automatic Voltage Regulator

The R130 AVR is a subtractive regulator connected to a compound circuit. This set up is adjusted to provide a
voltage higher than the rated voltage (see alternator instructions). The purpose of the regulator is to shunt the excess exciting current in order to maintain the voltage at its rated value.
