Tags: Marathon Automatic voltage regulator SE350 For Marathon Alternators,AVR DVR2000E,Digital Technology Voltage Regulator SE350,MARATHON 761594-01 , GPN011
Description

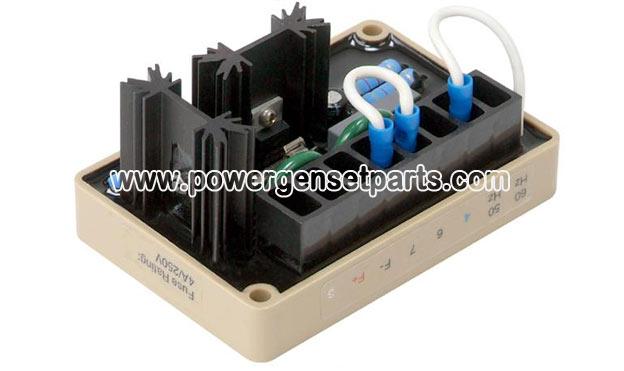

The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.
| SPECIFICATION | SE350 REGULATOR |
| Sensing amp; Power | Input 190-240 Vac |
| Burden | 500 VA |
| Output Power- Continuous | 73 Vdc at 3.5 Adc (255w) |
| Output Power - Forcing(240 Vac Input Power) | 105 Vdc at 5 Adc (525w) |
| Regulation | 1 .0% |
| Remote Voltage Adjustment Range | ± 10% with 2000 ohm rheostat ± 5% with l000 ohm rheostat |
| Frequency Compensation | Adjustable |
| Roll off frequency | 54-61 Hz for 60 Hz 45-51 Hz for 50 Hz |
| Operation | Weight6.5 oz. |
| Operating Temperature | - 40°C to + 60°C |
| Storage Temperature | - 65°C to + 85°C |
| Power Dissipation | 8 watts maximum |
| Size | 3.94" L X 2.66” W X 2.20: H |
| Voltage Buildup | Internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac. |
| EMI Suppression | Internal Electromagnetic Interference Filter (EMI Filter ) |
