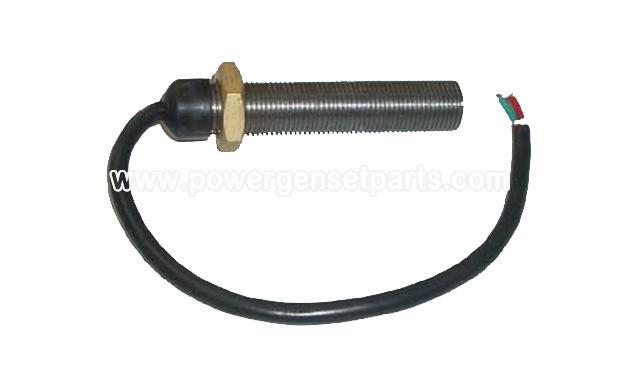

Magnetic Pick Up MSP675

Name: Magnetic Pick Up MSP675

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:Magnetic Pick up MSP675,GAC MSP675,Magnetic Speed Sensor MSP675

Detailed Product Description

Specifications:

Proximity to gear teeth: 0.025-0.035 in. (0.64- 0.89mm)

Temperature Range: -60°Fto +225 °F (-55°C to +105°C)

Output: 0.5-30 Volts RMS is recommended for input to contol units (1 V RMS when cranking engine)

Resistance (Varies From Sensor to Sensor): 3.0- 1200 ohms

P/N	Pickup Length A	Thread Length B	Overall Length C
MSP6718	4.375(111)	3.5(89)	4.71(120)

P/N	Pickup Length A	Thread Length B	Lead Length C	Thread Size	Drill Size
MSP675	3.125(79)	2.75(70)	7.00(178)	5/8-18 UNF-2A	37/64
MSP676	5.0(127)	4.625(118)	12.00(305)	5/8-18 UNF-2A	37/64
MPS6719	2.375(60)	2.00(51)	6.00(152)	5/8-18 UNF-2A	37/64
MSP6720	3.875(98)	3.50(89)	4.500(114)	5/8-18 UNF-2A	37/64
MSP6729	2.7(69)	2.25(57)	72.00(1829)	3/8-24 UNF-2A	0.332
MSP6730	1.7(43)	1.25(32)	72.00(1829)	3/8-24 UNF-2A	0.332
MSP6731	4.0(102)	3.55(90)	72.00(1829)	3/8-24 UNF-2A	0.332
MSP6721	3.125(79)	2.75(70)	2.50(64)	5/8-18 UNF-2A	37/64
MSP6723	3.125(79)	2.75(70)	2.50(64)	M16*1.5	14mm
MSP6724	4.00(102)	3.375(86)	2.5(64)	3/4-16 UNF- 2A	0.6875

P/N	Pickup Length A	Thread Length B	Lead Length C	Connector Length	Thread Size	Drill Size
MSP677	3.125(79)	2.75(70)	4.25(108)		5/8-18 UNF-2A	37/64
MSP678	5.00(127)	4.75(121)	6.125(156)		5/8-18 UNF-2A	37/64
MSP679	3.125(79)	2.75(70)	4.25(108)	2.375(60)	5/8-18 UNF-2A	37/64
MSP6710	5.00(127)	4.75(121)	6.125(156)	2.375(60)	5/8-18 UNF-2A	37/64
MSP6714	3.125(79)	2.875(73)	4.25(108)	M16*1.5		14mm
MSP6715	3.125(79)	2.875(73)	4.25(108)	2.375(60)	M16*1.5	14mm

P/N	Pickup Length A	Thread Length B	Overall Length C	Thread Size	Drill Size
MSP6728	3.125(79)	2.75(70)	6.5(165)	5/8-18 UNF-2A	37/64
MSP6728C*	3.125(79)	2.75(70)	6.5(165)	5/8-18 UNF-2A	37/64
MSP6732	3.125(79)	2.75(70)	3**(76)	5/8-18 UNF-2A	37/64
MSP6732C*	3.125(79)	2.75(70)	3**(76)	5/8-18 UNF-2A	37/64
MSP6733	3.125(79)	2.75(70)	6.5(165)	5/8-18 UNF-2A	37/64
MSP6733C*	3.125(79)	2.75(70)	6.5(165)	5/8-18 UNF-2A	37/64
* Magnetic speed sensors are with mating connector;
** MSP6732C has two independent coils, it is designed with two separate cables of the same length.
