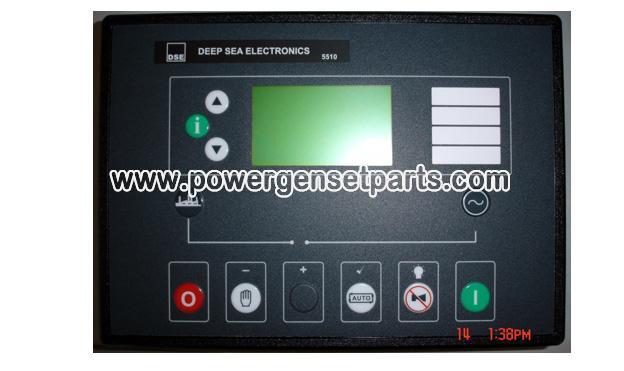

DSE5510
Features
The DSE5510 is an Automatic Engine Contro lModule, designed to provide advanced load share
functionality for diesel and gas generating sets that include nonelectronic and electronic engines.
The module also provides excellent engine monitoring and protection features.
The module’s load share functions include, automatic synchronising with built in synchroscope and
closing onto dead bus. Direct and flexible outputs from the module are provided to allow connection
to the most commonly used speed governors and automatic voltage regulators (AVRs).
The module has been designed to combine a maximum of 16 generators and 16mains (utility)
supplies up to a maximum of 20 in one system, e.g. 16 generators and 4mains (utility) supplies (DSE5560 required to synchronise with the mains).
The module has the ability to monitor under/over generator volts, over current, under/over generator frequency, under speed, over speed, charge fail, emergency stop, low oil pressure, high engine
temperature, fail to start, low/high DC battery volts, fail to stop, generator short circuit protection,
reverse power, generator phase rotation error, earth fault protection, loss of speed signal, fail to open,
fail to close, out of sync, MPU open circuit failure, negative phase sequence and loss of excitation.
KEY FEATURES
• Electronic engine capability
• RS232 or RS485 remote communications
• Modbus RTU
• Pin number protected front panel programming
• Engine exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Voltage measurement
• Configurable inputs (9)
• Configurable outputs (5)
• Automatic start
• Manual start
• Audible alarm
• LED indicators
• Built-in governor and AVR control
• Engine history event log
• Engine protection
• Fault condition notification to a designated PC
• Front panel mounting
• PC configuration
• Bus failure detection
• Configurable alarm timers
• Configurable start amp; stop timers
• Automatic load transfer
• SMS alert messaging
• Front panel mounting
• Remote monitoring
• Magnetic pick-up
KEY LOAD SHARE FEATURES
• ROCOF amp; vector shift
• Automatic starting amp; stopping of generator on load demand
• Automatic hours run balancing of generator sets
• Dead bus sensing
• Module has the ability to interface with existing load share lines
• Direct communication from the Module to the governor and AVR
• Link up to 16 generators
• Volts amp; frequency matching
• KW and Kvar load sharing with multiple generators
BENEFITS
• Sends SMS messages to engineers to notify specific engine problems (GSM Modem and SIM card required)
• On-site and remote (modem
required) module configuration
• In-built engine diagnostics
removes the requirement for service equipment
• Full engine protection amp; instrumentation without the need
for additional senders (Electronic
engines only)
• Remote monitoring of the module
using comprehensive DSE PC software
• License free PC software
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8V to 35V continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the
need for internal batteries
MAXIMUM OPERATING CURRENT
460mA at 12V. 245mA at 24V
MAXIMUM STANDBY CURRENT
375mA at 12V. 200mA at 24V
ALTERNATOR INPUT RANGE
15V(L-N) to 333V AC (L-N) absolute maximum
ALTERNATOR INPUT FREQUENCY
50Hz - 60Hz at rated engine speed (Minimum:
15V AC L-N)
MAGNETIC PICK-UP VOLTAGE RANGE
+/- 0.5V to 70V Peak
MAGNETIC INPUT FREQUENCY
10,000 Hz (max)
CHARGE FAIL/EXCITATION RANGE
0V to 35V
OUTPUTS
START RELAY OUTPUT
16A DC at supply voltage
FUEL RELAY OUTPUT
16A DC at supply voltage
AUXILIARY RELAY OUTPUTS
Three outputs 5A DC at supply voltage
Two outputs volt free 8A at 250V AC
BUILT IN GOVERNOR CONTROL
Fully Isolated
Minimum Load Impedence: 1000Ω
Gain Volts 0V - 10V DC
Offset Volts + / - 10V DC
BUILT IN AVR CONTROL
Fully Isolated
Minimum Load Impedence: 1000Ω
Gain Volts 0V - 10V DC
Offset Volts + / - 10V DC
DIMENSIONS
OVERALL
240mm x 172mm x 57mm
9.4” x 6.8” x 2.2”
PANEL CUTOUT
220mm x 160mm
8.7” x 6.3”
