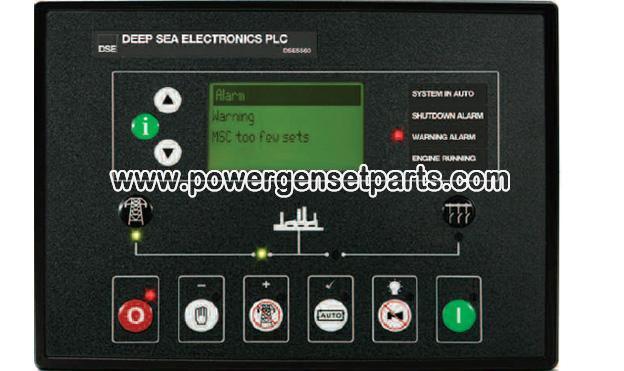

The DSE5560 is an Automatic Transfer Switch and Mains Control Module, designed to automatically
synchronise multiple DSE5510s with single or multiple mains (utility) supplies.
The module instructs the DSE5510s to make precise changes to the generating set outputs. This makes the module suitable for many applications including peak lopping, peak shaving and no break return.
The module has the ability to monitor the mains (utility) supply and start and stop the generating
sets (being controlled by a DSE5510) upon removal or detection of the mains (utility) supply.
The modules operational status is indicated on the LCD display and the front panel LEDs.
KEY FEATURES
• Multiple language options
• Back-lit 4-line text LCD display
• Configurable timers
• Configurable inputs (9)
• Configurable outputs (5)
• Automatic hours run balancing
• Peak lopping control for DSE5510
controlled generator bus
• Peak shaving
• No break return
• PIN protected programming
• Full remote control and telemetry
• Mains (utility) fail monitoring
• Load demand scheme
• Multiple mains (utility) monitoring
• System lock input
• Load switching control pushbutton
inputs
• Engine history event log
• LED indicators
• PC configurable
KEY BENEFITS
• On-site module configuration
• Remote module configuration via PC software
• In-built diagnostics removes the
requirement for service equipment
• Transfers between mains and generator
• Remote control and monitoring of
the module using comprehensive
DSE PC software
• License free PC software
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8V to 35V continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
460mA at 12V. 245mA at 24V
MAXIMUM STANDBY CURRENT
375mA at 12V. 200mA at 24V
INPUTS
GENERATOR BUS INPUT RANGE
15V(L-N) to 333V AC (L-N) absolute maximum
GENERATOR BUS INPUT FREQUENCY
50Hz - 60Hz at rated engine speed
(Minimum: 15V AC L-N)
MAINS SENSING INPUT RANGE
15V(L-N) to 333V AC (L-N) absolute maximum
MAINS SENSING INPUT FREQUENCY
50Hz - 60Hz (Minimum: 15V AC L-N)
MAINS (UTILITY) CT BURDEN
0.5VA
