Tages:Auto Transfer Switch and Mains (Utility) Control Module DSE7560,Load Share Control Module DSE7560
Features

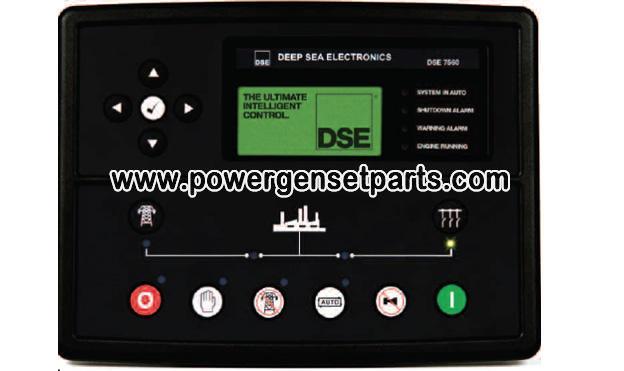

The DSE7560 is an Automatic Transfer Switch and Mains (Utility) Control Module, designed to automatically synchronise multiple DSE7510s with single or multiple mains (utility) supplies.
The module instructs the DSE7510s to make precise changes to the gen-set outputs, and provides sophisticated monitoring and protection functionality making the system ideal for a wide range of load sharing applications including peak lopping, peak shaving and no-break return.
The module will monitor multiple mains (utility) supplies, and upon removal or failure detection of the mains (utility) supply will automatically start or stop the gen-sets being controlled by DSE7510s. The modules operational status is indicated on the LCD display and the front panel LEDs.
A sophisticated module monitoring an extensive number of parameters, the DSE7560 will annunciate engine shutdowns, warnings, and engine status information on the back-lit LCD screen, by illuminated LED, on a remote PC, by audible alarm and via SMS text alerts. The module includes RS232 and RS485 ports as well as dedicated terminals for system expansion.
The module’s load share functions include automatic synchronising with built-in synchroscope and closing onto dead bus.
MODULE CAPABILITIES
• Fixed export with mains (utility) supply
• Will synchronise any combination of up to 16 gensets with up to 16 mains (utilities) up to a maximum of 20 in one system e.g. 16 gen-sets + 4 mains, 4 gensets + 16 mains etc
KEY LOAD SHARE FEATURES
• Fixed export with mains (utility)
• Volts and frequency matching
• kW and kV Ar sharing
• Dead bus sensing
• Peak lopping
• Peak shaving
• No break return
• Load demand scheme
• R.O.C.O.F amp; Vector Shift
• Mains (utility) de-coupling test facility
• Multiple mains (utility) monitoring
• Synchronising up to 16 generators
• Sequential start
• Auto ID negotiation
KEY FEATURES
• 4-Line back-lit LCD text display
• Five key menu navigation
• Front panel editing with PIN protection
• Multiple display languages
• LED and LCD alarm indication
• Customisable status screens
• 9 configurable inputs
• 5 configurable outputs
• Configurable timers and alarms
• Multiple date and time scheduler
• Event log (25)
• Mains (utility) fail monitoring
• Automatic load transfer between mains (utility) and generator
• Manual load transfer between mains (utility) and generator
• Audible alarm
• Backed-up real-time clock
• Fully configurable via by DSE7500 PC software
• Multiple display languages
• Remote SCADA monitoring and control via DSE7500 PC software
• RS485 communications
KEY BENEFITS
• 132 x 64 Pixel ratio display for clarity
• Real-time clock provides accurate event logging
• Remote monitoring of module using comprehensive DSE7500 PC software
• Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
• Modules can be integrated into building management systems (BMS)
• Surplus energy/power can be sold back to the grid (subject to local mains/utility supplier)
• Licence-free PC software
• IP65 rating (with supplied gasket) offers advanced protection from water ingress
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
340 mA at 12 V, 160 mA at 24 V
MAXIMUM STANDBY CURRENT
160 mA at 12 V, 80 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
MAINS (UTILITY)
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C amp; D
8 A 250 V (Volt free)
AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage
DIMENSIONS
OVERALL
240 mm x 181 mm x 42 mm
9.4” x 7.1” x 1.6”
PANEL CUT-OUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
