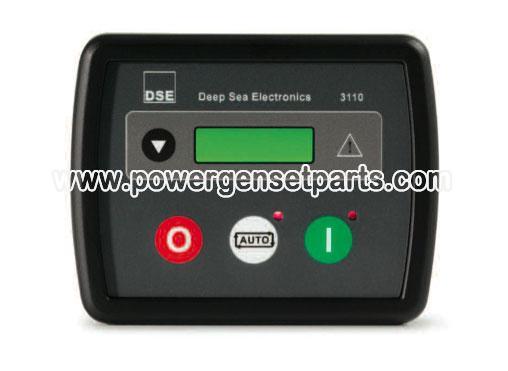

The DSE3110 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.
The DSE3110 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.
The module monitors engine speed, frequency, voltage and engine run hours and also displays the warning and shutdown status. The module includes fixed and flexible outputs as well as configurable inputs making this product ideal for a wide variety of applications. The module can either be programmed using the front panel or by using the DSE Configuration Suite PC software.
The module is available in two variants:
1. CAN – For use with electronic engines only.
• Optional frequency (Hz) sensing from main AC alternator for genset applications.
2. MPU/ALT. – For use with non-electronic engines only (magnetic pick-up/alternator sensing).
• Optional frequency (Hz) sensing from main AC alternator for genset applications.
• Optional Magnetic Pickup speed sensing.
KEY FEATURES
• Back-lit icon LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC configurable
• 6 Digital inputs
• 4 Outputs (2 configurable on Magnetic Pick up/Alt., 4 configurable on CAN version)
• Alternative configuration
• Configurable timers and alarms
• Remote Start input
• Generator voltage display
• Generator frequency display
• Battery voltage display
• Engine speed display
• Hours counter
• Engine pre-heat
• Comprehensive shutdown or warning on fault condition
KEY BENEFITS
• Tamper-proof hours counter
provides accurate information
for monitoring and maintenance periods
• Multiple engine parameters are monitored simultaneously
• Module can be configured to
suit individual applications
• Suitable for engine only applications
• Compatible with a wide range
of CAN engines
• Uses DSE Configuration Suite PC software for simplified configuration
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Licence-free PC software
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
CHARGE FAIL/ EXCITATION
8 V to 35 V fixed power source 2.5 W
NOMINAL STANDBY CURRENT
23 mA at 12 V, 18 mA at 24 V
MAXIMUM OPERATING CURRENT
35 mA at 12 V, 30 mA at 24 V
OUTPUTS
OUTPUT A (FUEL)
2 A DC at supply voltage
OUTPUT B (START)
2 A DC at supply voltage
AUXILIARY OUTPUTS C amp; D
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
