DSP-10 Genset Multi-Function Display Module

Name: DSP-10 Genset Multi-Function Display Module

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:DSP-10 Genset Multi-Function Display Module

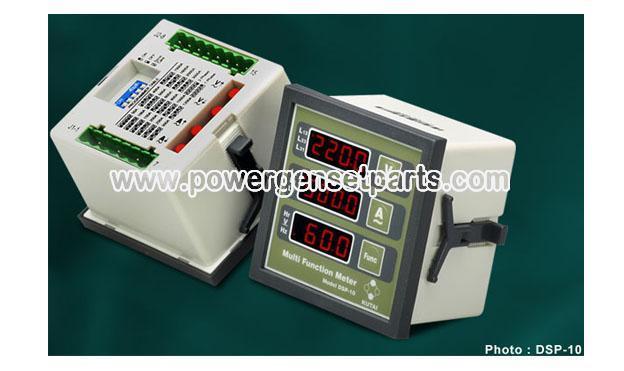

DSP-10

Genset Multi-Function Display Module

The DSP-10 Genset Multi-Function Display Module is an universal compact integrated digital displayer. It can be installed solely or joint with GCU-10.

Features

First and only Multi-function Display Module specially designed for generator set
Three sets four Digits High illumination LED Suitable for Outdoor use
Microprocessor Based Design
Full Phase AC Voltage RMS value Display
Full Phase with Load RMS value Display
AC Input Frequency Display
DC Supply Voltage Display
Engine Operating Time Display
All values can be programmed according to user's actual demand to be cyclic displayed
Compact, Anti-shock, Easy installation
DIN rail terminal for easy connection
Four adjustable Voltage and Current Push Buttons
Five Dip Switches For Specification Setting

Specifications

Model NO.	DSP-10
DC Supply	DC Voltage 9~36 VDC (12V , 24V)
Alternator Input Range	AC Voltage 10~500 VAC Frequency 50~60 Hz
Power Consumption	2 watt
Rated CT Capacity	Above 2.5 VA
CT Secondary Ratio	5A
Max. CT Rated	3000A / 5A
Environment	Operating Temperature : -20~70 °C Storage Temperature : -35~85 °C Relative Humidity : Maximum 90%
Panel Installation Cut-Out	66.0 x 66.0 ±0.5 mm
Dimensions	72.0 (H) x 72.0 (W) x 50.0 (D) mm
Weight	200 g ±2%

*Note : All features amp; specifications subject to change without notice.
