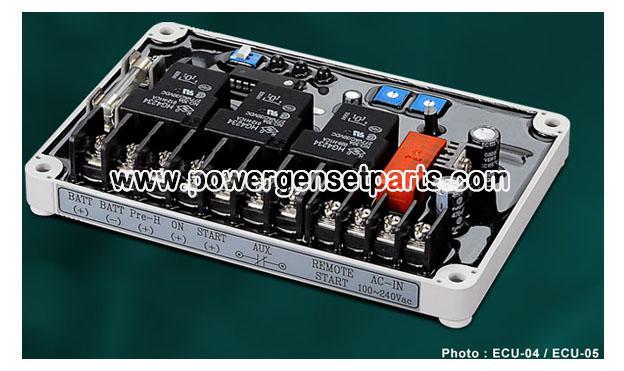

ECU-04 ECU-05 Auto-Start Control

Name: ECU-04 ECU-05 Auto-Start Control

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:ECU-04 ECU-05 Auto-Start Control

Manual Key Start Generator Sets Add-on Auto-Start Control

The ECU-04 and ECU-05 12 VDC and 24 VDC, 100 VAC to 240 VAC Universal Add-on Auto-Start Control for all manual key start generator sets, simply changes any manual key start generator to auto-start type.

Features

Microprocessor Automatically Mimics The Manual Start Procedure
Simple Installation, Without Changing Original Wiring
Easy to Set Up, low-cost, Small Size, Low Power Consumption
For Use In Gasoline And Diesel Generators
Three Attempts Multi-Start Function
Circuits Are Protected With 94-V0 Epoxy
Two Adjustable Time Delay Potentiometers

Specifications

Model NO.	ECU-04 / ECU-05
DC Supply	12 VDC (ECU-XX-12V) 24 VDC (ECU-XX-24V)
Alternator Input Range	Voltage 100~240 VAC Frequency 50~60 Hz
Ignition amp; Accessories Signal Output	30 Amp @ 12/24 VDC
Start Signal Output	30 Amp @ 12/24 VDC
Pre-Heat or Carburetor Signal Output	30 Amp @ 12/24 VDC
Auxiliary Signal Output	20 Amp @ 12/24 VDC
Time Delay Setting And Alarm Indicator	L1 : Remote Start Activated Indicator LED L2 : Generator Running Indicator LED L3 : Start Fail Indicator LED VR1 : Engine Pre-Heat Time Adjustment (1~25 sec.) VR2 : Starter Cranking Time Adjustment (1~25 sec.) SW : Function Selectable Switch
Environment	Operation Temperature : -20~80 °C Relative Humidity : Maximum 95%
Dimensions	150.0 (L) x 100.0 (W) x 31.0 (H) mm
Weight	ECU-04 : 368 g ±2% ECU-05 : 373 g ±2%

*Note : All features amp; specifications subject to change without notice.
