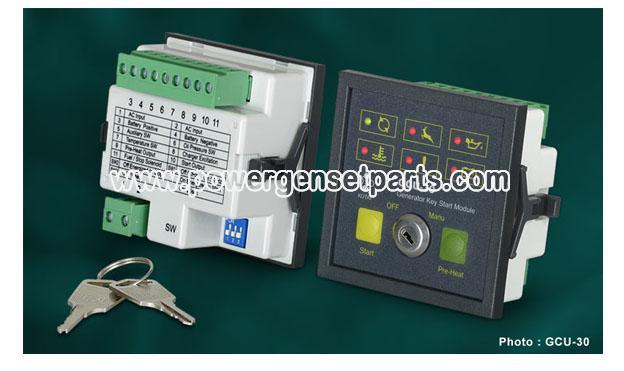

GCU-30 Manual Key Start Genset Control Unit

Name: GCU-30 Manual Key Start Genset Control Unit

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:GCU-30 Manual Key Start Genset Control Unit

GCU-30

Manual Key Start Genset Control Unit

GCU-30 Manual Key Start Genset Control Unit has many useful functions and engine protections like the charge alternator failure protection. It's suitable for most available Rental market generators.

Features

Microprocessor Based Design
Universal LED Graphic Interface, Displays Generator Status and Failures
Modular Design, Quick Installation
Waterproof Front Panel With UV Protection
Charge Alternator Failure Protection
Two Push Button for Start and Pre-Heat
Three DIP Switches For Specification Setting
Suitable for Most Available Genset on The Rental Market

Specifications

Model NO.	GCU-30
DC Supply	9.0 to 36 VDC
Rated AC Input Voltage	5~300 VAC
AC Frequency	50/60 Hz
Fuel Solenoid Signal Output	1.2 Amp @ 12/24 VDC
Start Signal Output	1.2 Amp @ 12/24 VDC
Preheat Signal Output	1.2 Amp @ 12/24 VDC
Charge Motor Excitation Signal Output	12/24 VDC
Power Consumption	Under 3 watt
System Setting	AC Frequency Setting → ON : 50 Hz , OFF : 60 Hz Stop Mode → ON : Energized to Start , OFF : Energized to Stop Engine Stop Timer Delay → ON : 20 sec. , OFF : 10 sec.
Protection amp; Alarm Status Indicators	High Water Temperature Protection Low Oil Pressure Protection Engine Over speed Protection Charge Alternator Failure Protection User Define Protection
Environment	Operating Temperature : -20~70 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 90%
Panel Installation Cut-Out	66.0 x 66.0 ±0.5 mm
Dimensions	72.0 (L) x 72.0 (W) x 37.0 (H) mm
Weight	101 g ±2%

*Note : All features amp; specifications subject to change without notice.
