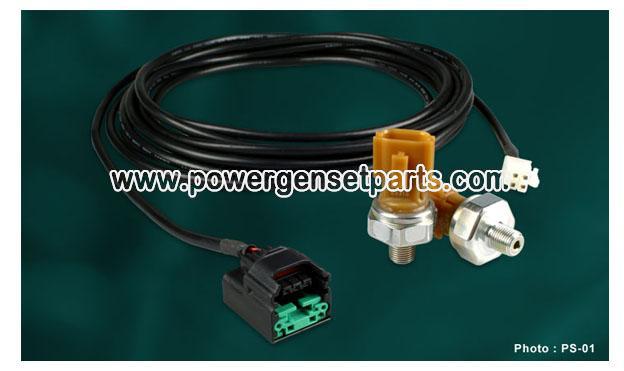

PS-01 Ceramic Capacitive Oil Pressure Sensor

Name: PS-01 Ceramic Capacitive Oil Pressure Sensor

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:PS-01 Ceramic Capacitive Oil Pressure Sensor

PS-01

Ceramic Capacitive Oil Pressure Sensor

Exclusive accessory for GCU-2000 Digital Genset PLC Control Unit

PS-01 Ceramic Capacitive Oil Pressure Sensor The most accurate oil pressure sensor available with accuracy ±2.5% (-30 °C to 120 °C) and exceptional vibration tolerance.

Features

Full Scale Accuracy ±2.5% (-30~120 °C)
Operating Temperature Range -40~140 °C
EMI Protection to 100 V/m
Transmission Distance Max. 30M
Waterproof Integral Electrical Connector
Exceptional Shake and Vibration Tolerance
No Adjustment needed, 100% Compatibility if New Sensor Replaced
Ceramic Capacitive Pressure Sensor, Excellent Accuracy, More Precise Than The Traditional Resistance Pressure Sensor
Built in Temperature Compensatory, Excellent Stability, Unaffected from External Thermal Interference
Extremely Stable Linearity Output, No need for Adjustment After Installation or Maintenance

Specifications

Model NO.	PS-01
Supply Voltage	4.5~5.5 VDC
Output Voltage	0.5~4.5 VDC
Supply Current	10 mA at 5.5 V
Output Current	1.5 mA
Output Ripple	25 mV rms
Accuracy	-30~120 °C ±2.5%
Thermal Effect On Snap	±0.002% / °C
Operating Pressure	0~120 Psi (0~8.0 Bar)
Proof Pressure	230 Psi (16.0 Bar)
Burst Pressure	435 Psi (30.0 Bar)
Thread	1/8-27 NPTF-2A
Ingress Protection	IP65
Operating Temperature	-40~140 °C
Dimensions	PS-01-2.5 : 2.5M PS-01-5.0 : 5.0M
Weight	PS-01-2.5 : 141 g ±2% PS-01-5.0 : 231 g ±2%

*Note : All features amp; specifications subject to change without notice.
