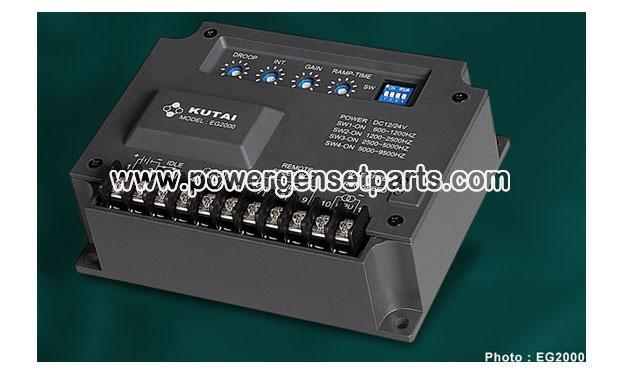

EG2000 Universal Electronic Engine Governor Controller

Name: EG2000 Universal Electronic Engine Governor Controller

On Line Service :
Print this page	Bookmark this
Inquiry product	E-mail Us
Live Messenger	Skype Online
PDF Download

Tages:EG2000 Universal Electronic Engine Governor Controller

EG2000

Universal Electronic Engine Governor Controller

The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, amp; Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in amp; Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators. It's compatible with following model. Cummins 4913988-BI, 3419988, 3098693 and 3044196 AVR. GAC ESD5500 and ESD5500E. Woodward EPG P/N 8290-189,8290-038, and ESD5500E K77255.

*EG1065X and EG1069X have ceased production and will be replaced by EG2000.

Features

Works on a wide ranges of MPU/flywheel frequencies
15 Amp Max Output
Suitable for all types of diesel and Gas engines
High Sensitivity and stable at Low Frequency Variations
Moisture, vibration, and rust protected, Epoxy encapsulated electronics
For Use With Isochronous Generators amp; Automatic Paralleling PLC controls
Idle Speed Adjustment and connections for a Remote Speed POT

Specifications

Model NO.	EG2000
Operating Voltage	10 VDC to 30 VDC
Output Current	From 0.5 Amp to 15 Amp
Frequency Range	600 Hz ~ 9500 Hz (PMG Signal)
Idle Speed Frequency	Adjustable From 30~85% of normal
Speed Band	±0.25% at steady state
Temp. Stability	Between -40~85 °C Better than ±0.5%
Remote Speed Adjustment Range (2 mode)	Adjustable Range ±5% with 5 K Ohm potentiometer
Ramp Time	3 to 20 Sec. (Adjustable)
Operation Environment	Operation Temp. : -40~85 °C Storage Temp. : -40~85 °C Relative Humidity : Maximum 95% Vibration : 3G @ 100~2 KHz
DIP Switch Description	SW1 : ON 600~1200 Hz SW2 : ON 1200~2500 Hz SW3 : ON 2500~5000 Hz SW4 : ON 5000~9500 Hz
Governor Controls	DROOP : Droop Rate Adjustment GAIN : MPU Output Gain Adjustment Int. : Engine Stability Adjustment RAMP-TIME : Soft Start Adjustment SPEED : Speed Adjustment IDLE : Idle Speed Adjustment
Dimensions	147.0 (L) x 114.0 (W) x 40.0 (H) mm
Weight	690 g ±2%

*Note : All features amp; specifications subject to change without notice.
